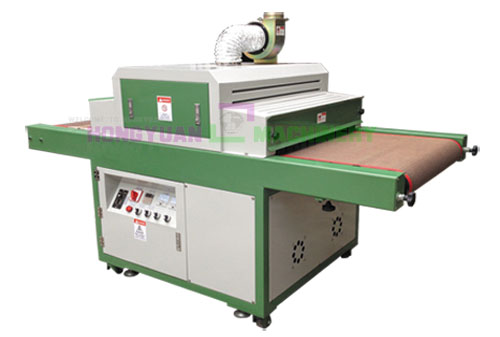

1000mm width conveyor uv curing machine(GW-UV1000)

  • Model number:GW-UV1000
  • Machine size:2300×1200×1500mm
  • Gross weight:250kgs
  • MOQ:1 set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:Within 3-7workdays after get client's deposit

UV Curing  Machine

Application:

Used in the field of post-printing by UV ink. Exposure through UV light onto the film of UV ink to let it dry. Drying to UV ink printed onto paper, PVC etc soft and thin substrates. Connecting with offset printer to cure UV ink.

Technical parameter:

1.Conveyer width:1000mm
2.Total wattage:10.4KW
3.Wind fan wattage:380V
4.ConveyEr speed:0~10m/min
5.Speed adjustment:Stepless
6. Outer dimension:2500×1200×1500mm
7. Net weight:250KG
8. Lamp wattage:5.6KW/380V×2pcs;
9. Max height of production:75mm.

Advantages:

1. Made by high temperature conveyer belt,
2. Famous brand motor drive,stepless speed adjustment.
3. High quality UV lamp to ensure exposure power.
4. Taiwan transformer,startup organ . long life to use
5. With convulsions function to remove quantity of heat in curing case
