6 Color Full Pneumatic Auto T Shirt Screen Printing Machine(GW-6C-14S)

  • Model number:GW-6C-14S
  • Printing area:400*500 mm
  • Printing speed:1200 pieces per hour
  • MOQ:1 set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 20days

6 Colors Automatic Carousel Screen Printing Machine For T shirt

Application:

This kind machine is full pneumatic automatic,high precision,easy to install,steady,safe and low price.it need 2 person to operate it,and can get 6 color-register,lots of customers like it very much!

Features:

1.Rotary style,table can turn 360 degrees printing 6 color one time
2.Screen frame/worktable can be micro adjust
3.Match 5 sets flash dryers between every color/printing.Automatic drying at once after screen printed
4.Total 10 worktables: Unloading/unloading: 2 pcs,  Printing 6 color image: 6 pcs,  Drying device: 6 pcs
5.Machine control by full pneumatic,save energy and high precision

Technical parameter:

1.Full pneumatic,automatic,and auto rotary, auto printing

2.Printing colors:6 colors

3.Worktable size:500*700mm

4.Workstation: 14pcs

5.Max.frame size:700*1000mm

6.Max.printing area:400*600mm

7.Max.printing speed:700PCS/Hr

8.Air pressure:0.4Mpa

9.Color-register precision: ±0.10mm

10.Machine size:4.6*4.6*1.5M

11.Weight:1000kg

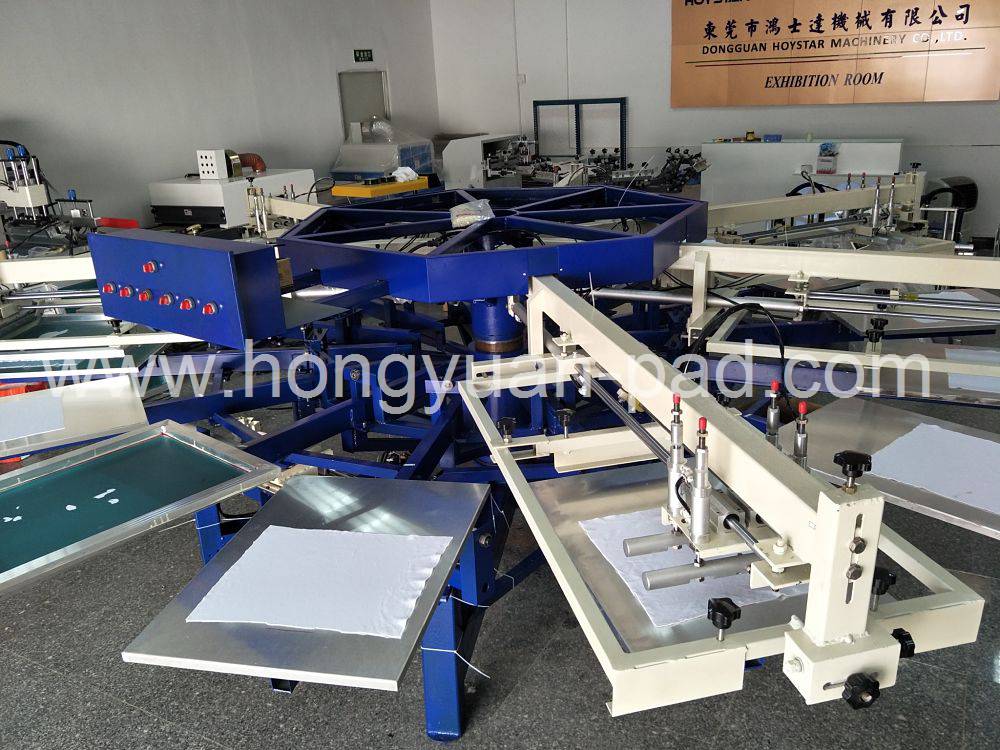

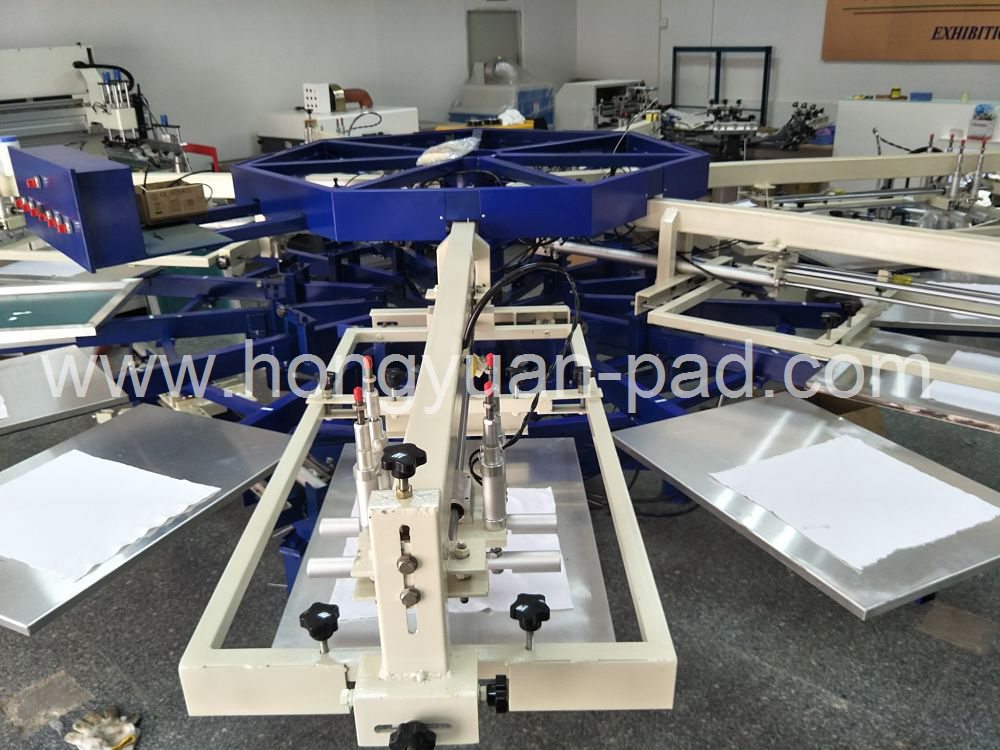

Rotary T shirt Screen Printing Machine

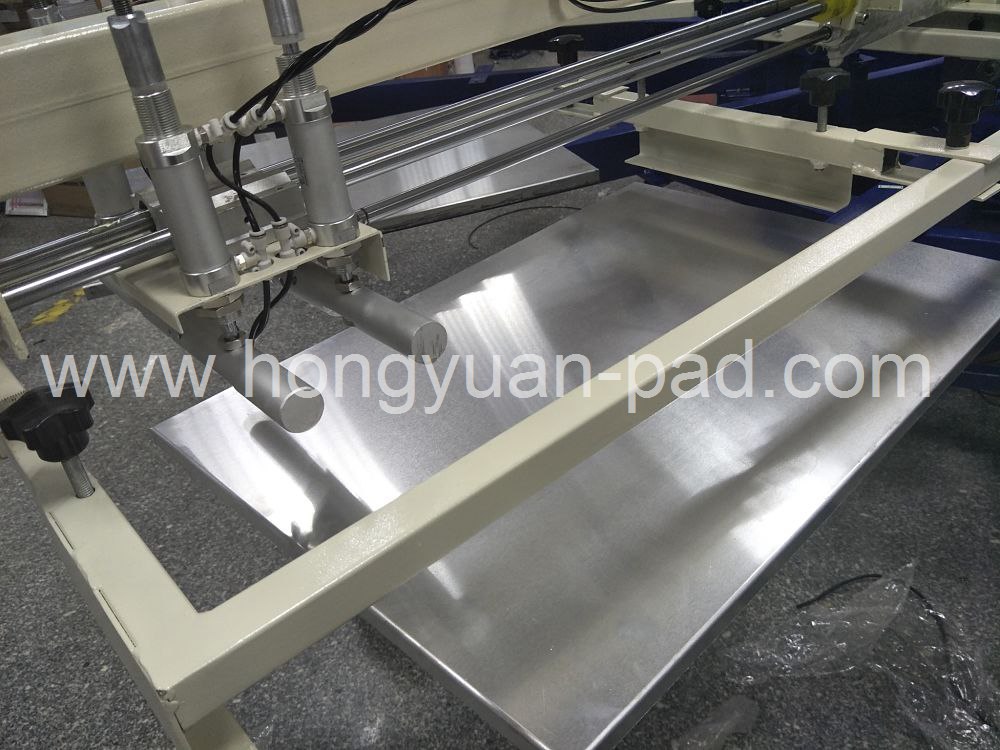

Rotary T shirt Screen Printing Machine

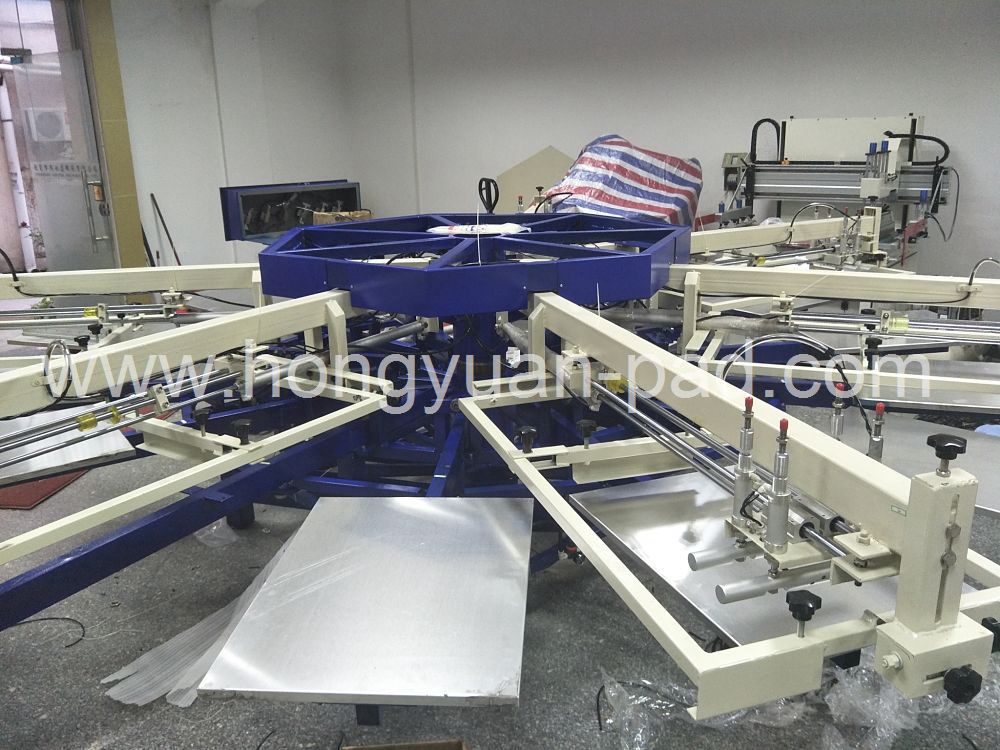

Rotary T shirt Screen Printing Machine

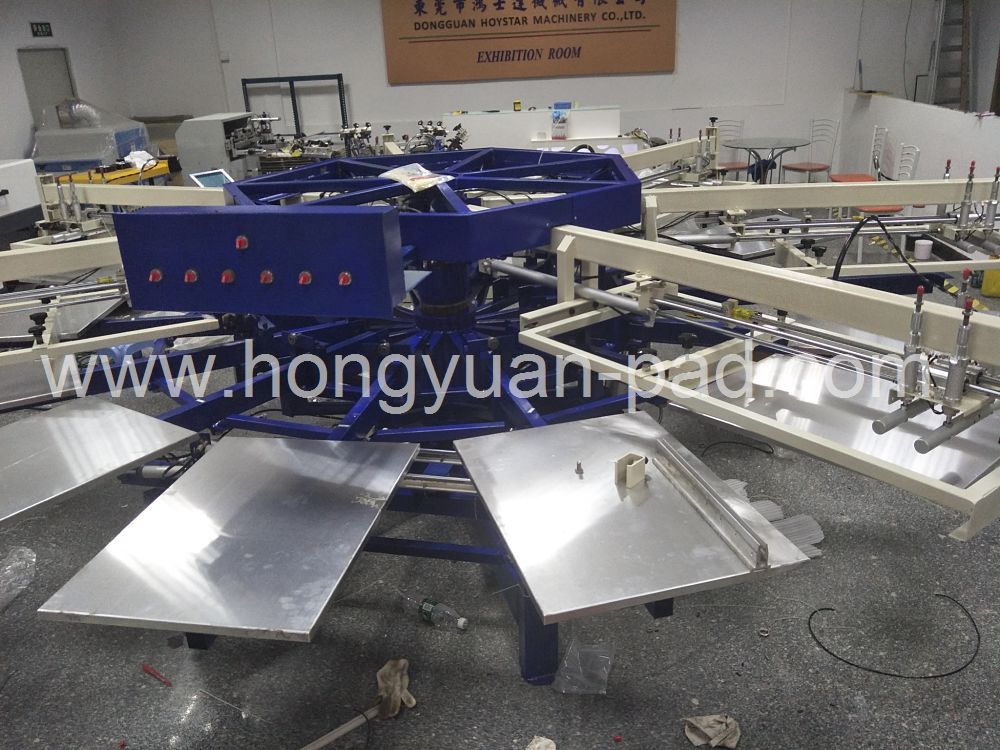

Rotary T shirt Screen Printing Machine
