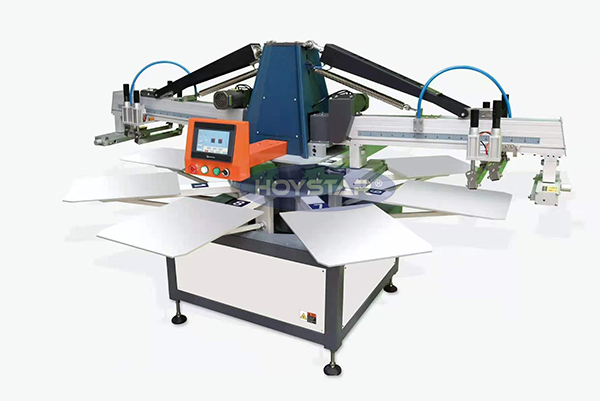

Automatic 2 Color 8 Stations T-Shirt Screen Printing Machines

  • Model number:GW-2C-8S
  • Printing area:400*400mm
  • Printing speed:700pcs/hour
  • Machine size:diameter 2500* height 1650mm
  • Gross weight:800KG
  • MOQ:1set
  • Payment terms:T/T,Western Union,LC
  • Package way:wooden box
  • Delivery way:by sea
  • Lead time:Within 25 workdays
  • Worktable size:420*500mm

Automatic 2 Color 8 Stations Electric T-Shirt Screen Printing Machines


these series is the multifunctional automatic screen printers. With intellegent micro-processor, touch screen and motor driven system equipped, it brings into high printing stability and colors registration tolerance up to ±0.1mm. All parts of the machine body are tested precisly before installation, ensuring minimal maintenance and easy operation. The automatic screen printer must be your ideal printer in printing industry.


1. Motor driven and high-tech system built in
2.Turntable Rotates freely for high positioning nice registration.
3.Print/flood speeds adjusted electrically
4.Print pressure, print strokes , and it angle are adjustable.
5. The movable dryer can be put inside of any print stations as necessary

Technical Parameter

1.Max. Image Area:400×400/mm
2.Pallet Size:420×550/mm
3.Frame Size:500×700/mm
4.Air Source :≥0.8 Mpa
5.Max.air Consumption:24.71L/100mm
6.Max.Output :700pcs/h
7.Power :2.0KW
8.Machine size: φ2500mm

9.Weight: 800KG

T-Shirt Screen Printing Machine

T-Shirt Screen Printing Machines

T-Shirt Screen Printing Machines
