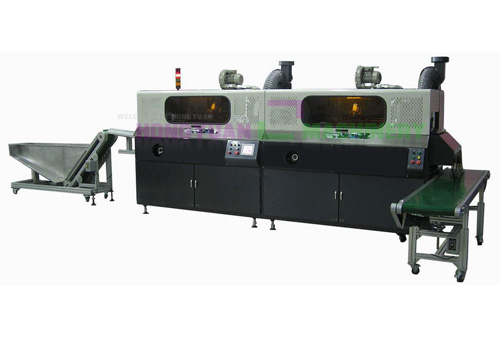

Automatic 2 Color Cylinder Screen Printing Machines

  • Model number:GW-2C-UV-XS
  • Printing speed:4000PCS/Hour
  • Machine size:2000*1200*1750mm X 2set
  • Gross weight:2000kg

Machine introduction

the full automatic two color curve screen printer is widely applicable to high-precision  pictures & words printing on the container surface in   cosmetic, medicine, food, electric appliance, toy, cabinet and  many other fields. The demand of Arc surface printing ,such as cylindrical, elliptic cylindrical and other heterotype   containers,could always be meet,and the machine is compatible   for plastic,glass,metal materials. The electric control system consists of PLC and advanced touch screen as to intelligent   operation for the whole machine .The new transmission system consisted of advanced imported  motor,speed converter device and pneumatic component which has   the function of electrodeless variable-speed,synchronous   transmission ,auto allocation and no-workpiece-no –printing.

technical parameter:

  ⊕ Round printing diameter:30mm~108mm
  ⊕ Round printing height:40mm~280mm
  ⊕ Oval printing diameter:R20mm~R180mm
  ⊕ Oval printing height:40mm~280mm
  ⊕ Max printing speed:3600Pcs/Hour
  ⊕ Power supply:AC220V 1 PAHSE/AC380V 3Phase 50Hz/60Hz
  ⊕ Rated power:15KW
  ⊕ Air pressure:5~8bar
  ⊕ Machine dimension:(L2000mm*W1200mm*H1750mm)*2 pcs
  ⊕ Machine weight:2000kgs
