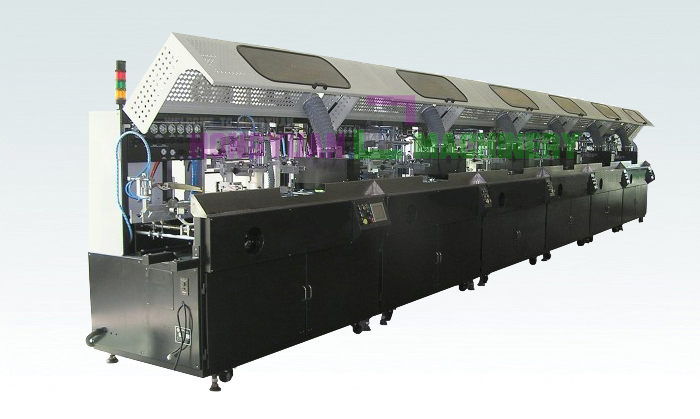

6 Color automatic cylinder serigraph printing machine for glass bottle

Application:

This machine is widely applicable to high-precision pictures and words printing on the container surface in cosmetic, medicine, food, electric appliance, toy, cabinet and many other fields. The demand of Arc surface printing ,such as cylindrical, elliptic cylindrical and other heterotype containers,could always be meet,and the machine is compatible for plastic,glass,metal materials. The electric control system consists of PLC and advanced touch screen as to intelligent operation for the whole machine The new transmission system consisted of advanced imported motor,speed converter device and pneumatic component which has the function of electrodeless variable-speed,synchronous transmission ,auto allocation and no-workpiece-no–printing

Function:

Auto feeder
Automatic loading direction-selectionsystem
Auto flame treatment for container surface
Electrodeless variable-speed motor system
Adjustable mechanical synchronous transfer system
Auto pre-allocation system
No printing while no bottle system
UV-drying system

Specification：

Round printing diameter：20mm~108mm
Round printing height：20mm~280mm
Oval printing diameter：R20mm~R180mm
Oval printing height：20mm~280mm
Max printing speed：3600Pcs/Hour
Power supply：AC380V 3Phase 50Hz/60Hz
Rated power：45KW 7.5KW(Single station)
Air pressure：5～8bar
Machine dimension：(L2000mm×W1200mm×H1750mm)*6 pcs
Machine weight:6000kgs
