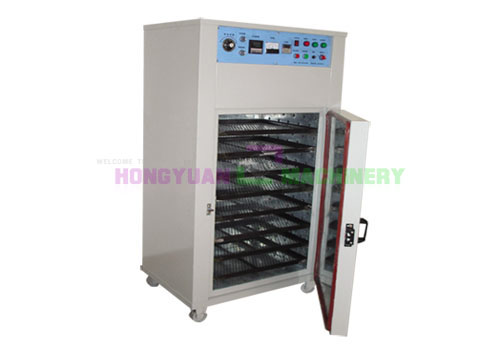

Drying Oven With One Door(GW-KW-S)

  • Model number:GW-KW-S
  • Machine size: 600*600*1500mm
  • Gross weight:180kg
  • MOQ:1 set
  • Payment terms:T/T,Paypal,Western Union,L/C
  • Package way:plywood
  • Delivery way:by sea or by air or by express
  • Lead time:within 10days

Drying ovan with one door

Function:

1.The material of Oven adopts 1.2mm stainless plate with zinc which meets National Standard,and inner adopts zincification Perforated sheet

2.The inner of oven,we have total three types, layer type,cart type and hanging type(you can choose one type by yourself)
3.Air supply style: horizontal type, Upper and lower type,left and right type, assembled type(optional)
4.The circuit of oven is automatic timing alarm new circuit
5. Electronic components adopts import or domestic high-top accessories.and also it has cooling system to make sure electrical is working under common temperature
6. Equipped with a three-phase protection and a overcurrent protection device
7.Import insulation cotton, good insulation, save electricity,It can save 30% electric power changes than another common oven(it meet environmental requirement)
8.Import high temperature gland strip, good durability(imoprt silicon gel)
9.It adopts especial wind channel,Taiwan motor,low noise,wind power stronger, up/middle/down temperature error is controlled 1~2℃

Technical parameter:

1.Small inner size:600*600*700mm
2.Large inner size: 600*600*1500mm
3. Intelligent thermostat: double display,A. Setting temperature B. The actual temperature
4. Temperature scope: 0~300℃
5.Input power: 380VAC/50Hz(three phase four-wire system+ ground wire)
6. power rating: 5.50/KW
7. Machine weight:150kg
8. Application: the machine is suitable for drying and curing kinds of plastic products,hardware , electronic components etc.
9.Outside of machine is toast paint( top grade computer white)
10.glass window.whole shelve that would carry approx. 30kg.
