Desktop Single Color Pad Printing Machine

  • Model number:GW-MINI
  • Printing area:80*80 mm
  • Printing speed:1800 pieces per hour
  • Machine size:560*420*600 mm
  • Gross weight:45kgs
  • MOQ:1 set
  • Payment terms:T/T,western union, paypal
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:Within 3-7workdays after get client's deposit

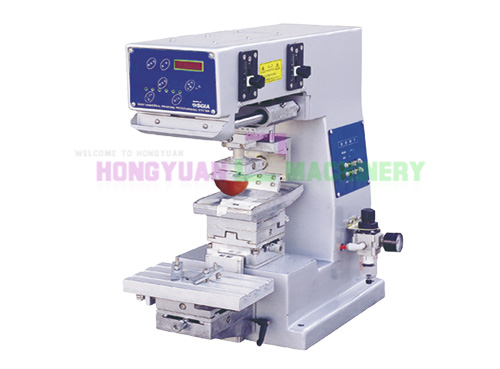

Semi Auto 1 Color memory card for mobile Pad Printing Machine

Application :
This pad printing  machine adopts no base design,small and high speed,you can install more sets of machine to form multicolor production line in smaller workshop.otherwise,very economic,this can reduce factory invest in equipment. it is can print kinds of items,such as electronic product,plastic shell,hardware product,stationery,small arts and crafts,the small logo on the surface of gifts and so on.
Technical parameter:

Steel plate size:100*100mm

Printng speed:1800PCS/HR

Power:220V   50-60MHZ

Air pressure:5-7BAR

Machine size:560*420*600 mm

Weight:40kgs

front/back distance:125MM

Up/down distance:50MM

Max.printing area:80*80mm

printing station:1PC

the pad printer come with one piece plate, one piece silicon pad.

Printing Samples
