IR Textile Tunnel Dryer For T Shirt(GW-500H)

  • Model number:GW-500H
  • Machine size:2000*800*1200 mm
  • Gross weight:180kgs
  • MOQ:1 set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:plywood
  • Delivery way:by sea or by air or by express
  • Lead time:within 7days

Screen printing infrared dryer

 Application:

This dryer machine with conveyor belt,it is designed for lab and mass production.This conveyor belt system has quiet varying-speed motor,when the dryer is various loads, speed -adjusting driver and the speed of conveyor are Uniform,it is suitable for kinds of items which have different size.

It is suitable for printing,painting, hot-setting adhesive, ink jetting,and T-shirt printing etc.

Technical parameter:

Machine size: 2000*800*1200 mm

Drying area : 500*1000mm

Belt width:500mm

Max.conveyoring width:750mm

Max.conveyoring height:100mm( it can be adjustable)

Material of belt: Teflon

Speed:1-10m/minutes

Lamp: Infrared lamps

Temperature:160 degree

Lamp wattage: 800w*6pieces

Power :220V/380v

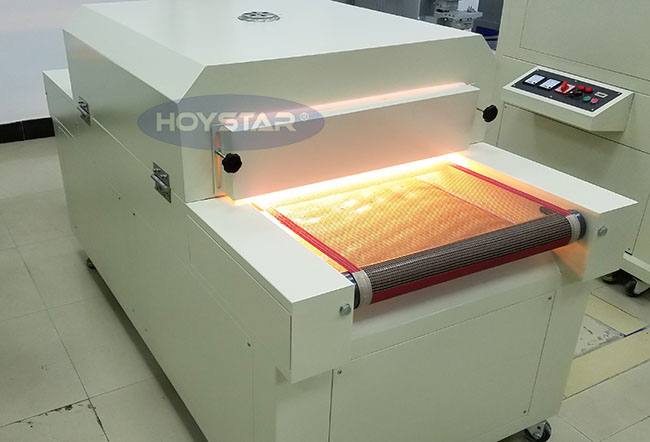

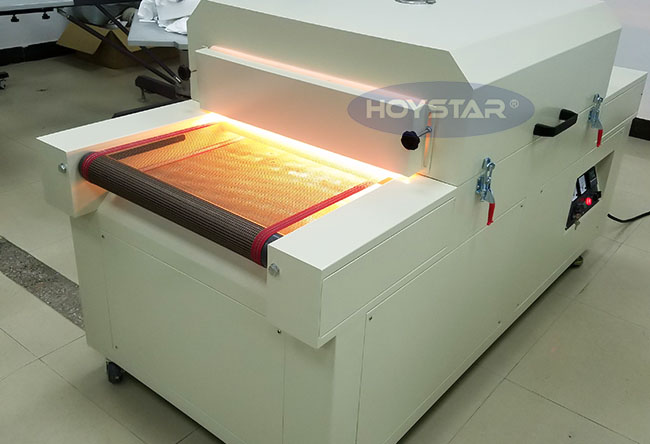

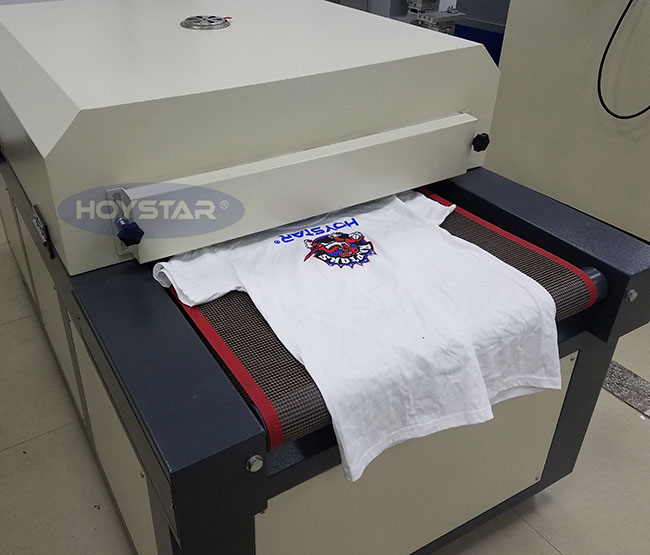

Real pictures:

Infrared Drying Machine

Infrared Drying Machine

Screen printing infrared dryer
