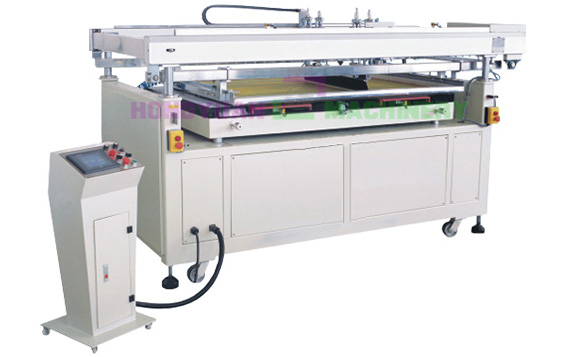

Large 4 Post Semi Automatic Screen Printing Machine With Vertical Lift

  • Model number:GW-100140
  • Printing area:1000*1400mm
  • Printing speed:500pcs/hour
  • MOQ:1 Set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:by wooden box
  • Delivery way:by sea
  • Lead time:Within 3-7workdays after get client's deposit
  • Worktable size:1100*1500mm

100140 big size paper sheet flatbed screen printer


It is suitable for printing different material flat items such as textile t-shirts/garment/clothes,plastic sheet,pp/pvc/pe/pet film,paper/leather bag,glass,ceramic tile,arylic/metal/aluminum board,panel,traffic/road/outdoor signage,car stickers......and so on


1.Loading by artificial,automatic precise positioning,automatic printing.Easy operation,quality assurance.
2.Conveyor belt has anti-skid device,smooth transmission, low noise, long life,easy to install and maintain
3.The machine is controlled by Japan mitsubishi PLC and touch screen control panel
4.Automatic positioning,adopts multi-point positioning to ensure various shapes of products precision.
5.Pressure is equilibria to make sure printing to be uniformity  .
6.Pneumatic off-grid system,off-grid height can be adjusted to meet printing speed
7.Screen frame has slightly adjustment function
8.Printing driving system adopts import linear guide and synchronous belt,running is steady,frequency conversion stepless speed regulation
9.Worktable is vacuum to make sure high precise printing
10.Printing scraper,ink-reclaiming blade using Japan SMC sword pneumatic components control.
11.It with auto alarming system and perimeter security protect switch to ensure safety in production.

Standard Technical Parameter:

1.Max.printing area:1000*1400mm
2.Max.printing speed:500PCS/Hr

3.Power:380V 50Hz
4.Air pressure:0.6-0.8Mpa
5.Worktable size:1100*1500mm
6.Max.sreen frame size: 1200*1600mm
7.Max.workpiece height:50mm
8.Number of Color: single color

Also we can customize the machine size according different customers's requirement.
