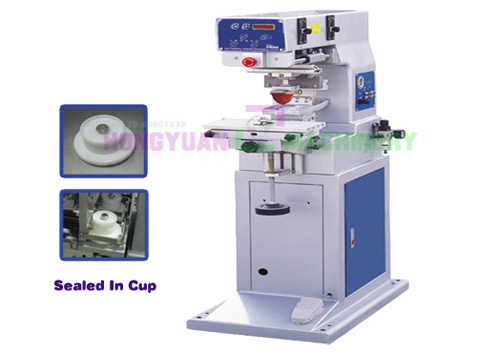

Tampon Printing Machine, Watch Dial Pad Printing Machine 1 Color

Application:

this pad printer is a medium-sized single color pad printer, comparing with MINI system, it is more bigger. And demanding lots of factory to print single color products with simply adjusting and steady running.

It is suitable for printing electronic product,plastic shell,lighter,usb,sm card,hardware product,stationery,logo on the surface of small arts and crafts and so on.

Machine structure:

1. SCM IC complile action program,kinds of printing model options
2. Auto 4-digit counter built-in,and stat. Printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. Worktable,plastic head can be adjusted X.Y.Z direction.
5. the pressure of Sucking ink and printing pad can be adjusted independently
6. The distance of scrapping ink is adjustable
7. It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8. The speed of all the cylinders have an independent regulator intortum
9. Front/back distance is long,and it can print bigger size product
10. It adopts fully Japan SMC and Taiwan MINDMAN pneumatic component
11. Every adjustment station has graduation marked
12. All the  machine is running steadily,and high printing  precision

 Technical parameter:

steel plate:100*250mm

Max.Printing speed:1500PCS/Hr

Power:220V   50-60MHZ

Air pressure:5-7BAR

Sealed ink cup diameter:90mm

Max.printing area:80mm(diameter)

Printing workstation:1PC
