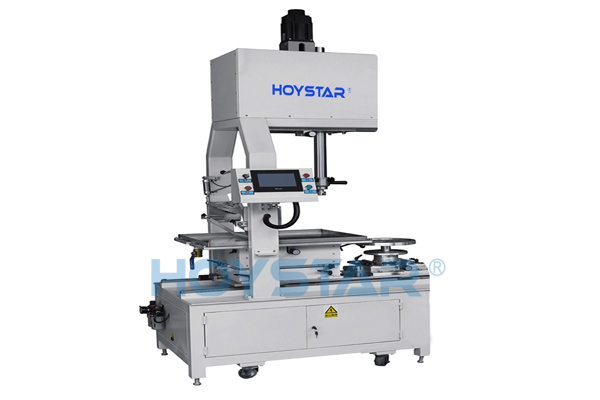

One Color Ceramic Plate Pad Printer

  • Model number:GW-L1P
  • Printing area:300*300MM
  • Printing speed:500PCS/Hr
  • Machine size:1500*650*2200mm
  • Gross weight:350kgs
  • MOQ:1 unit
  • Payment terms:T/T
  • Package way:plywood case
  • Delivery way:By Ocean
  • Lead time:within 45 workdays after your order confirmation and deposit

Application:

This machine most suitable for printing all kinds of shape ceramic plates bowls, metal pans ,pots ,fry pans ,trays with high printing quality,max printing area can reach 300*300mm, Very powerful machine. it can be printed inside ,outside ,edge and oddly shape.

Function:

1.PLC control , make it more stable performance, easier operation, lower noise, pressure uniformity, easier maintenance.
2.Print  head up and down movement is controlled by motor servo. Worktable movement is controlled by motor servo
3.The print pattern is clear and accurate, and the repetition error is ± 0.3mm.
4.Apply to smooth or rough surface products, all over the broader scope.
5.Cost lower than screen printing, hand painted and decal for ceramic production (including paint, oil seal).
6.suitable for wide area printing and applicable within the range of 50mm-350mm.

Technical parameter:

Max.print size: 300*300mm

Max.printing speed:500PCS/Hr

Machine weight:380kgs

Printing colors: 1 color

Air requirement: 5-7 Bar

Power: 220V 50HZ

Machine size: 1500*650*2200mm
