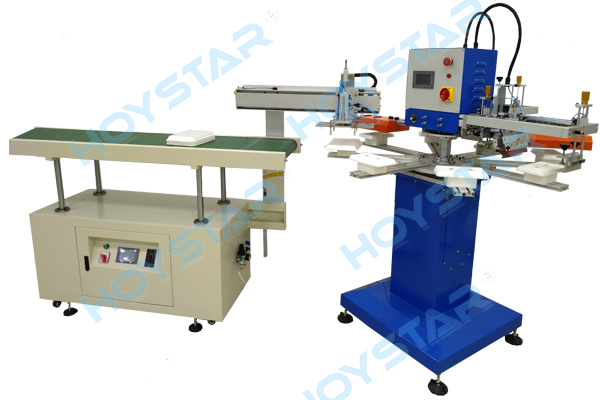

2 Colors Screen Printing Machine for Printing Lunch Box

  • Model number:GW-200TRS-B
  • Printing area:100*150mm
  • Printing speed:1200PCS/HR
  • Machine size:1500*1500*1550mm
  • Gross weight:480kgs
  • MOQ:1 unit
  • Payment terms:T/T
  • Package way:plywood case
  • Delivery way:By Ocean
  • Lead time:within 45 workdays after your order confirmation and deposit

Application:

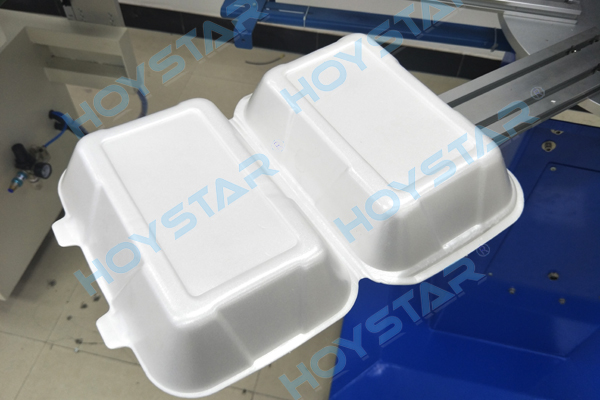

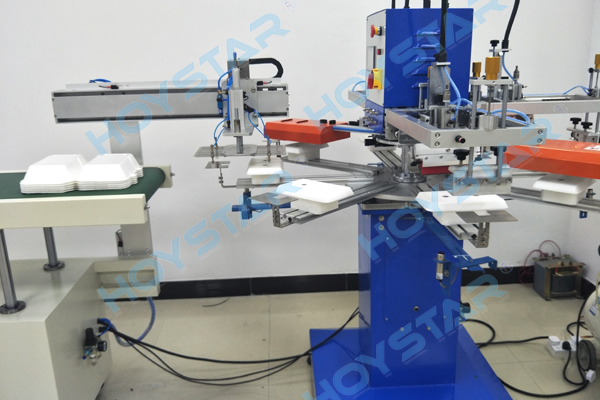

this kind 2 colors printing machine is specially designed for printing the lunch boxes(the box surface should be flat),it is loading by manual---auto printing--auto drying--auto unloading,very easy to install and operate

Configuration instructions:
1.Machine control part adopts MITSUBISHI PLC controller,Touch screen control,easy to operate
2. Three printing model to choose,manual/semi-auto/full-auto,printing Interval time is numerical control
3. The rotate worktable adopts electric control,CHINT AC contractor, Taiwan FOTEK photo-switch
4. Drying system lamp brightness can be adjusted,like this,it can meet different temperatures needing
5. High quality infrared lamps,it can be up to 1500-2000 hours
6. It has “No product,No print" function,you can open and stop machine freely during printing,Product sensors can be 360 degrees adjustable

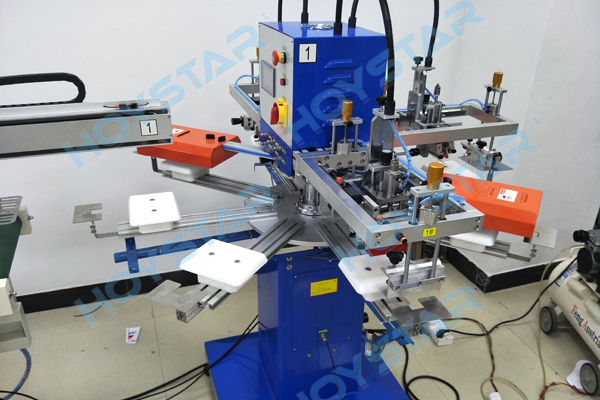

7. It has total 8 pcs of work station,2 pcs of printing work stations,3 pcs of drying systems and 3 pcs of load/discharging work stations
8. The 2 printing head can be controlled independently
9. Pneumatic components control adopts Taiwan brand,front and back printing precision linear Guide rails using Taiwan brand.
10.Machine surface is metallic paint ,beautiful and dignified
Technical parameter:
1. Printing area:100*150mm
2. Frame size:270*380mm
3. Machine size:1500*1500*1550mm
4. Printing speed:1200PCS/H
5. work station:8PCS

6. Drying system:3PCS

Printing Samples:
