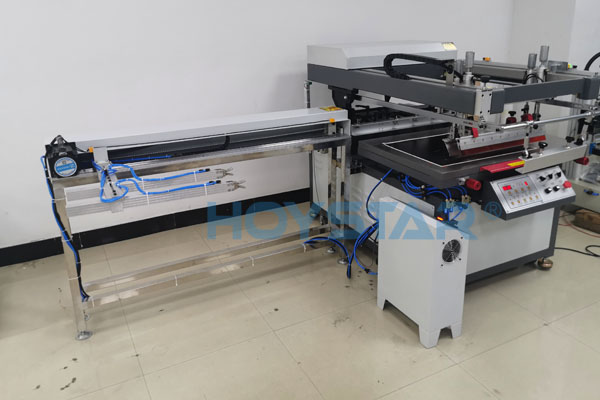

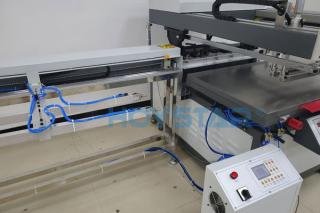

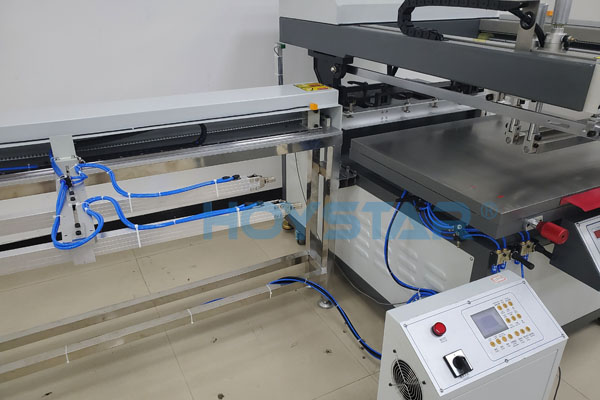

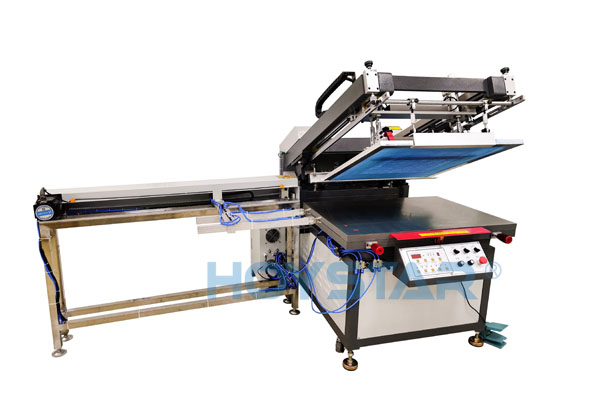

Screen Printing Machine with Unloading System

  • Model number:GW-6090X
  • Printing area:600*900mm
  • Printing speed:1200PCS/HR
  • Gross weight:350KGS
  • MOQ:1set
  • Payment terms:T/T or Western Union,or Paypal
  • Package way:plywood box
  • Delivery way:by Ocean or By air
  • Lead time:within 15 workdays after your order confirmation
  • Worktable size:600*900mm

 Screen Printing Machine with Unloading System

Application:

It is a big size vertical flat screen printing machine with auto unloading device, It is suitable for printing PVC, it can only print  film sheet, pvc sheet, pp sheet, paper,key film, plastic sheet . and high precision  screen printing within printing area 600*900mm

Function:

1.Tilted-arm structure, The forward/backward action of printing head is drived by electromotion
2.SCM controlled circuit,printing and screen plate up/down adopts independent driver source
3.Frequency conversion motor drives printing knife rest,magic eye controls strock distance,independent adjustment
4.There are average air intakes on high -hardness Worktable,
5.Power vacuum adsorption,make sure accurate color registration
6.There are three kinds of models,such as manual.semi-automatic and full-antomatic,printing indirect time is conrolled by figure
7.independently designing machine head up/down equipment,it is convenient to replace scraper,ink covering blades and frame and easy to clean screen frame
8.Double guide rod left/right screen arm,and equipt plate distance adjustale equipment,easily adjust

Technical parameter:

1.Max.printing area:600*900mm

2.Max.printing speed:1000PCS/Hr

3.Power:380V/50HZ

4.Air pressure:5-7bar
5.Worktable size:700*900MM
6.Max.workpiece height:0-20mm
7.Number of Color: single color
