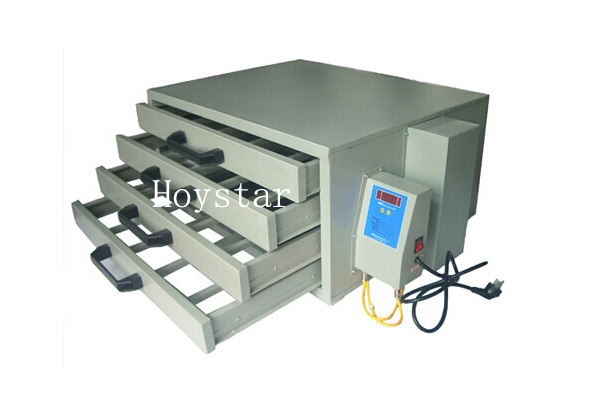

Small Screen Frame Oven(GW-8060)

  • Model number:GW-8060
  • Machine size:90*60*40CM
  • Gross weight:45kgs
  • MOQ:1set
  • Payment terms:T/T,Paypal or Western Union
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 7 workdays

Silk Screen Printing Plate Drying Oven Screen Frame Drying Cabinet

Application:

Screen drying cabinet is an important tool in screen printing. Several procedures need a screen drying cabinet like degreasing screen ,coating emulsion, coating hardener, washout and so on.This machine gives up traditional heating pipe technique to adopt advanced and safe flate carbon fiber heating plate. Professional design, energy saving, safe and easy manipulation, used for drying screen ,shading light, proofing dust and so on, suitable for drying screens below 25”x21”(64x53cm)


Function:

1.Intelligent temp controlling system. Its temp can be adjusted according to the heat resistance of screen mesh. When the room temp is 77℉ (25℃), its highest temp can reach 172℉ (78℃).
2.The inside installed axial flow fan makes the hot air in circulation, which guarantees an equal temp in cabinet and can improve drying efficiency meanwhile. The axial flow fan (specially used for large computer equipment) can normally be used for about 20,000 hours. It usually takes 2-4 minutes to well dry the screens coated with the photosensitive emulsion.
3.It adopts hierarchical (100 levels) temp-adjusting system; users can adjust temp according to ambient temperature and different materials. It can operate according to your set temp next time because of its automatic memorizing function.
4.It is wholly coated without corrosion and dandification. The drawer type is flexible but perfect tight. All kinds of screens can be placed and moved flatly with printed side up to guarantee the adhesive layer smooth.
5.The heating plates are adopted the newest blade and unit type, with double-heat, low power and high heat efficiency. At the same time, it guarantees the temperature of machine even to make the temperature of each floor even and accurate.
6.Total power is 800W.compared with traditional 3000-8000W cabinet, this machine can save power 70-90%.
7.Constructed by four layers of cabinets,4 frames below 25”x21”(64x53) can be held at the same time, saving time, improving efficiency.
8.Inner and out sides all adopts electrostatic spraying, professional outlook, easy to clean and no rust.

Technical parameter:

1.Max.screen frame:65*53cm
2.machine:90*60*40cm
3.Gross weight:30kg
