Tilted-Arm Screen Pringting Machine(GW-6090X)

  • Model number:GW-6090X
  • Printing area:600*900 mm
  • Printing speed:1200 pieces per hour
  • Machine size:1100*800*1300mm
  • Gross weight:520kgs
  • MOQ:1 set
  • Payment terms:T/T,western union, paypal

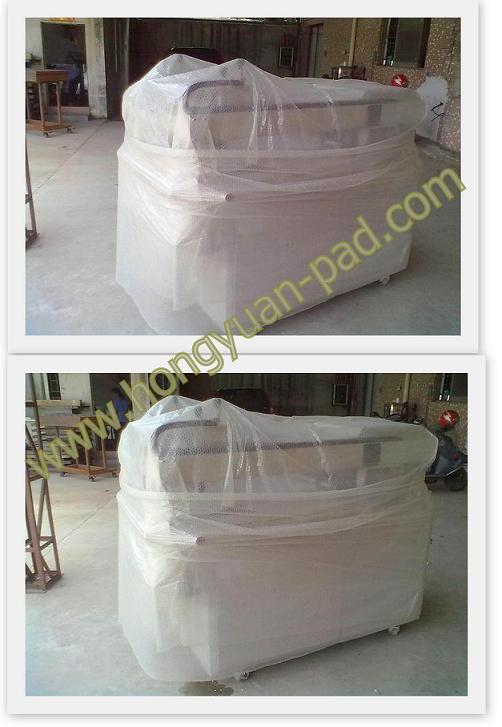

  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 7days
  • Worktable size:700*1100mm

PVC Sheet Electric Flat Silk Screen Printing Machine


1.Tilted-arm structure, The forward/backward action of printing head is drived by electromotion
2.SCM controlled circuit,printing and screen plate up/down adopts independent driver source
3.Frequency conversion motor drives printing knife rest,magic eye controls strock distance,independent adjustment
4.There are average air intakes on high -hardness Worktable,
5.Power vacuum adsorption,make sure accurate color
6.There are three kinds of models,such as manual.semi-automatic and full-antomatic,printing indirect time is conrolled by figure
7.independently designing machine head up/down equipment,it is convenient to replace scraper,ink covering blades and frame and easy to clean screen frame
8.Double guide rod left/right screen arm,and equipt plate distance
adjustale equipment,easily adjust

Collocate introduction

1.machine control adopts Germany Philips PNX SCM controller,control plate with button
2.Circuit adopts Japan OMRON relay,China CHNT AC Electromagnetic Contactor and Taiwan RIKO photocell eye switch
3.Printing adopts Taiwan ABBA linearity slide rail and Chenggang gear decelerate motor,Danmark HOLIP tansducer printing drive
4.Printing scraper and ink covering blades adopts Italy EASUN pneumatic component control
5.Printing worktable adopts special structure and special material.

Technical parameter:

1.Max.printing area:600*900mm 2.Max.printing speed:1000PCS/Hr 3.Power:220V/110V 50-60MHZ | 200W
4.Air pressure:5-7bar
5.Worktable size:700*1100mm
6.Max.sreen frame size: 750*1300MM
7.Max.workpiece height:50mm
8.Number of Color: single color

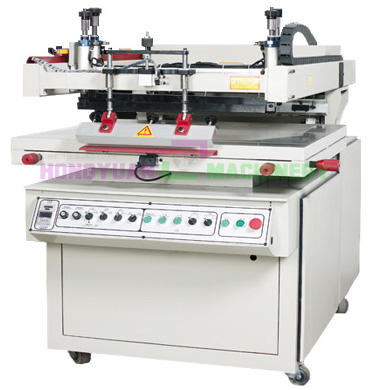

Machine Pictures:
