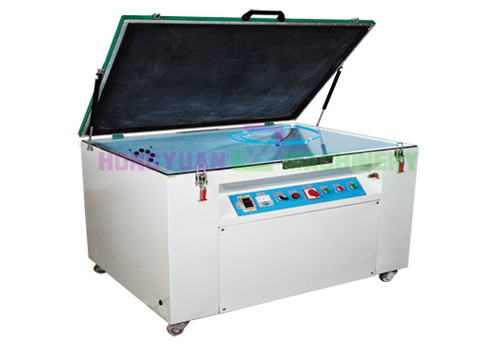

Vacuum UV Exposure Unit (GW-S)

  • Model number:GW-S
  • Machine size:1000*1250*1020mm
  • MOQ:1set
  • Payment terms:T/T,Western Union,Paypal
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 7 workdays

Application:

This exposure unit is used for exposuring screen plate, steel plate ,PS plate or other printing plate

Description:

Max.exposure size:900*1200mm
Power:220V/380V
Lamp tube wattage:2KW
Lamp-house:UV light
Glass size: 900*1200MM

Glass thickness:10mm

Vacuum:0.05mpa

Source density:80w/cm

Equipped with auto shutter system
Microcomputer control,easy operation
Uniform light intensity
It can running for 24 hours continuously

Dimensions:1000×1250×1020mm ( L × W × H)
