(GW-400TRS-XL) New machine for 4 color silk screen printing machine

Date: 2019-08-27 Clicked: 1307

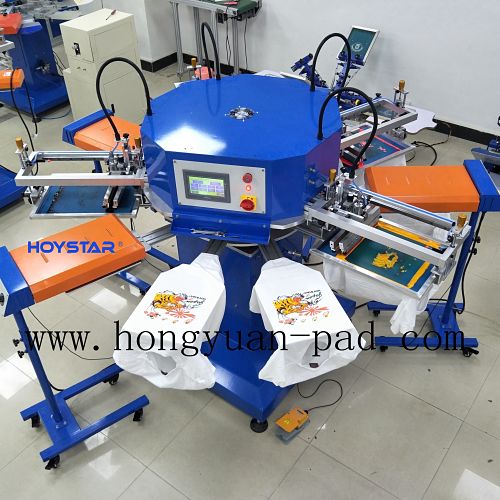

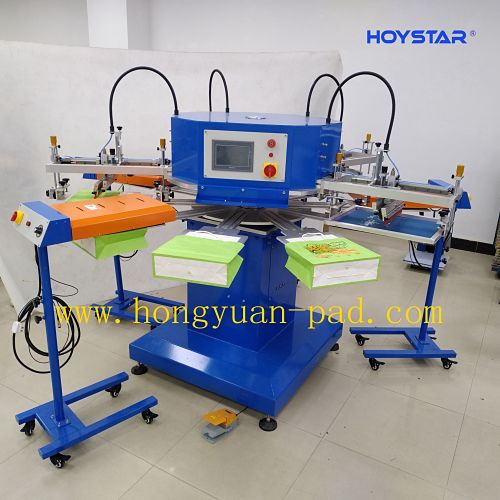

(GW-400TRS-XL) New machine for 4 color silk screen printing machine

Here is our new machine for 4 color silk screen printing machine,it can print t shirt/paper bags /non woven bags etc

Configuration instructions：
1.Machine control part adopts MITSUBISHI PLC controller,Touch screen control,easy to operate
2. Three printing model to choose,manual/semi-auto/full-auto,printing Interval time is numerical control
3. The rotate worktable adopts electric controll,CHINT AC contactor, Taiwan FOTEK photoswitch
4. Drying system lamp brightness can be adjusted,like this,it can meet different temperatures needing
5. Hihg quality infrared lamps,it can be up to 1500-2000 hours
6. It has “No product,No print" function,you can open and stop machine freely during printing,Product sensors can be 360 degrees adjustable
7. It has total10 pcs of work station,4 pcs of printing work stations,4 pcs of drying systems and 2 pcs of load/discharging work stations
8. The 4 printing head can be controlled independently

Technical parameter：
1. Printing area：300*300mm
2. Frame size：400*520mm
3. Machine size：2200*2100*1600mm
4. Printing speed：1200PCS/H
5. work station：10PCS
6. Drying system：4PCS
7. Machine weight：480KG

Customized according to customer's requirement

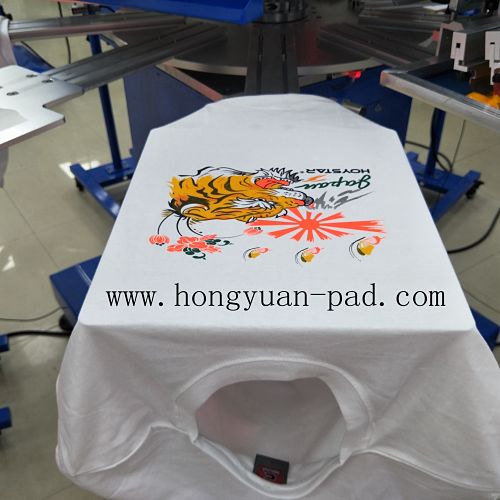

1. 4 color silk screen printing machine for t shirt :

t shirt screen printing machine
