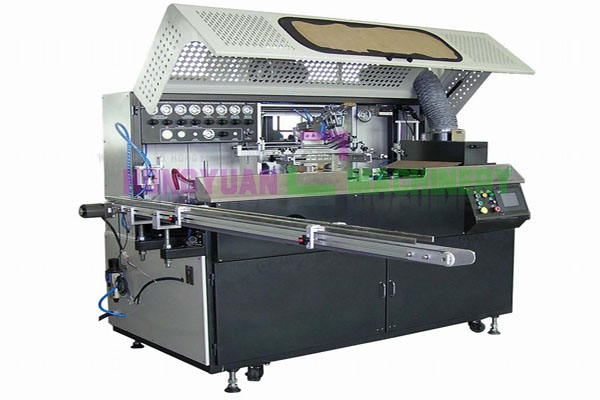

Automatic one color cylinder screen printing machines(GW-1A-UV)

  • Model number:GW-1C-UV
  • Printing speed:4200pcs/hour
  • Machine size:L2000mm*W1200mm*H1750mm
  • Gross weight:1600KG
  • MOQ:1 set
  • Payment terms:T/T 40% deposit,remain T/T before shipment or LC at sight
  • Package way:wooden box
  • Delivery way:by sea
  • Lead time:within 25 workdays

Product name:Automatic one color cylinder screen printing machines

Application:

It is suitable for printing some round and oval containers,such as cosmetic,leechdom and food service industry. It can print kinds of design on the surface of round/oval container.The material of workpiece can be plastic,glass,ceramic,metal and so on

Main function:

 ⊕ Auto feeder
 ⊕ Automatic loading direction-selectionsystem
 ⊕ Auto flame treatment for container surface
 ⊕ Electrodeless variable-speed motor syst
 ⊕ Adjustable mechanical synchronous transfer system
 ⊕ Auto pre-allocation system
 ⊕ No printing while no bottle system
 ⊕ UV-coating system

Technical Parameter:

⊕ Round printing diameter:25mm~110mm
  ⊕ Round printing height:60mm~280mm
  ⊕ Oval printing diameter:R35mm~R180mm
  ⊕ Oval printing height:60mm~280mm
  ⊕ Max printing speed:4200Pcs/Hour
  ⊕ Power supply:AC220V 1 PAHSE/AC380V 3Phase 50Hz/60Hz
  ⊕ Rated power: 7KW 20A
  ⊕ Air pressure:5~8bar
  ⊕ Machine dimension:(L2000mm*W1200mm*H1750mm)
  ⊕ Machine weight:1600kg
