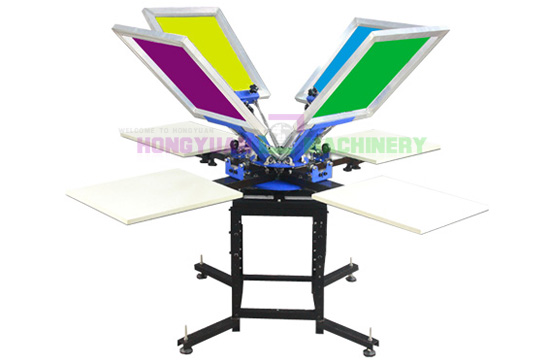

Manual 4 color 4 station silk screen printer(GW-450)

  • Model number:GW-450
  • Printing area:400*350mm
  • Printing speed:600pcs/Hr
  • Machine size: 2800*2800*1350mm
  • Gross weight:120kg
  • MOQ:1set
  • Payment terms:T/T,Western Union,Paypal
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 7 workdays
  • Worktable size:500*400mm

Function:

REGISTRATION AND OFF-CONTACT SYSTEM
1.U-slot guide locator system
2.Precise four-point pallet height adjustable system, offering wide range of off-contact adjustment
3.Print head lock-in design maintains exact color-to-color repeatability but ensuring +/-0.10mm registration
SCREEN CLAMPS & HOLDERS
1.Built with a low profile and release height adjustable arms, reducing operators fatigue and downtime
2.Three large-size knobs secure screen frame tightly
3.Appliable in various frame sizes up to 500mm wide
4.Two-spring hinge system increases the print speed
PALLET SYSTEM
1.Special resin made pallets provide a durable, effective print surface
2.Accommodate all types of pallets adhesives
3.Easy-to-install feature combined with left-and-right adjustment
4.Available in any special requirements
HEAVY DUTY CONSTRUCTION
1.Tapered roller bearings designed for easy spinning
2.Duo-deck system speeds up print production
3.Unique cabinet base support provides absolute stability and a spare space for multi-use
4.Heavy duty frame construction for durability and minimum flex
MODELS AND BUSINESS OPPORTUNITY
1.Print production made up to 700 pcs/hour
2.Unlimited growth opportunity
3.Requires no special skill or education-easily operated by anyone

 Technical parameter:

1. printing colors:4colors
2. Max.printing area:450*550mm
3. Worktable area:450*550mm
4. Machine Size: 280×280×135cm
6. weight:120kg
