Multi Color Cup silk screen printer Logo Automatic Screen printing Machine

  • Model number:GW-2A-M
  • Printing area:320*100mm
  • Printing speed:2500pcs/hour
  • Machine size:2650*1550*1700mm
  • Gross weight:450KG
  • MOQ:1set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:Within 25 workdays
  • Worktable size:100*250mm

Multi Color Milk Tea Disposable Plastic cup silk screen printer Logo Coffee Paper cup Automatic Screen printing Machine

What's this machine use for ?
It is suitable for kinds of disposable cup such as
Plastic cup, PET cup, tea cup, paper cup, coffee cup, pulp cup, yogurt cup, milk tea cup……and so on

Machine can be optional with single color or 2 color printing
its full automatic line included automatic feeding, pre-treating, printing, uv curing and unloading together, high speed and save
labor

Technical Parameter
Max.printing area
320*100mm
Max.screen frame size
450*120mm
Air pressure
5-7 Bar
Electric voltage
220V 1 Phase
Total Workstations
8 pcs
Dimension
2500*1500*1550mm
Weight
250KG
Details Images

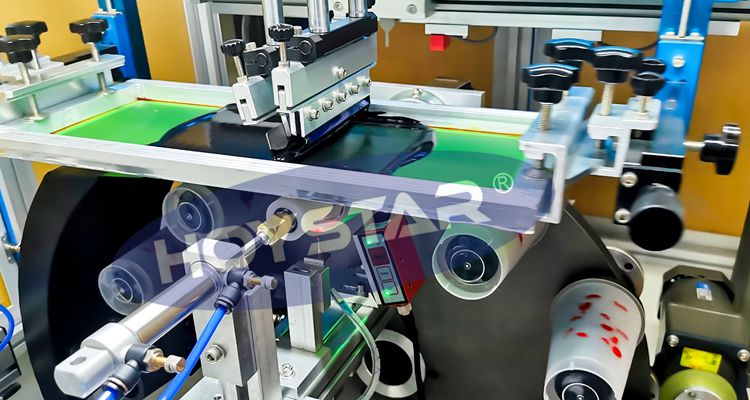

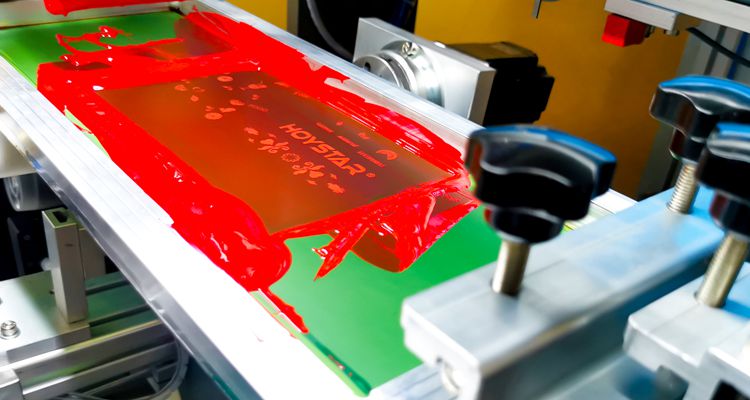

1st Color ink Printing head

2nd Color ink Printing head

Cup surface automatic treating device

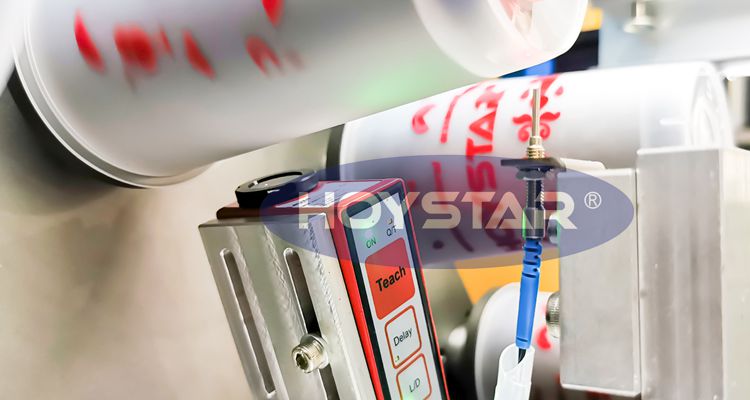

Precise automatic registration system for multi-color printing

UV LED Curing system for optional

Automatic feeding & Unloading device, high speed save labor

Features
1. PLC program and Touch screen control panel
2. Automatic feeding and unloading device, high speed save labor energy
3. Pre-press surface treatment, corona and flame for choice
4. Printing function 1 color or 2 color optional
5. Automatic registration system, used for multi-color process printing, very accurate
6. Automatic Sensor, no cup, no printing
7. LED UV Curing system for optional
8. Humanize Customized and change mould/jig for fix cup with different size

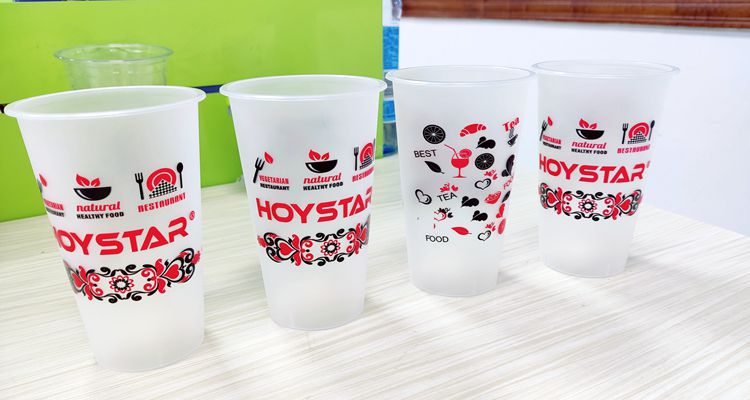

Printed Sample Show
Packing & Delivery
Package Material
by wooden case

Package dimension
2650*1550*1700mm

Gross weight
360KG

Shipping way
by sea

Delivery time
10 workdays

Company Profile


Dongguan Hoystar Printing Machinery Co., Ltd(Hongyuan Industry H.K Co.,Ltd) integrates design, production, and sale together and has a professional team. We specialize in pad printing machine, screen printing machine, screen-stretchers, UV machines, exposure machines and other peripherals. Moreover, we can design and produce non-standard machines according to customers' special requirements. Our company adopts micro-computer systems to control machines with electrical integration. It ensures safe use and convenient operation and can substitute imported machines. Our company enjoys a high reputation in domestic and international markets for strong technology, advanced processing machines, perfect inspecting solutions, precise quality management systems and excellent after-sales service. Our products sell well in America, Australia, Norway, England, The United Arab Emirates and Egypt. The range of application of our products is containing kinds of commodity, appliance, auto part, metallic tool, toy, craft and package printing for cigarette, wine and cosmetic. After several years' development, we become the big pad and screen printing machine factory in South China area, also become the member of SPIAC. Due to good fame and sales channel, perfect products and services, we have sold lots of machines to America, Japan, Korea and Southeast Asia. The yearly sale is in the top of the same industry. And become one of the leading enterprises.
