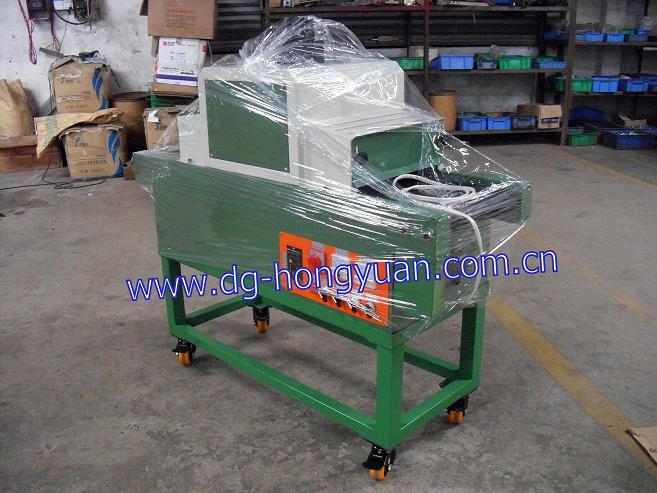

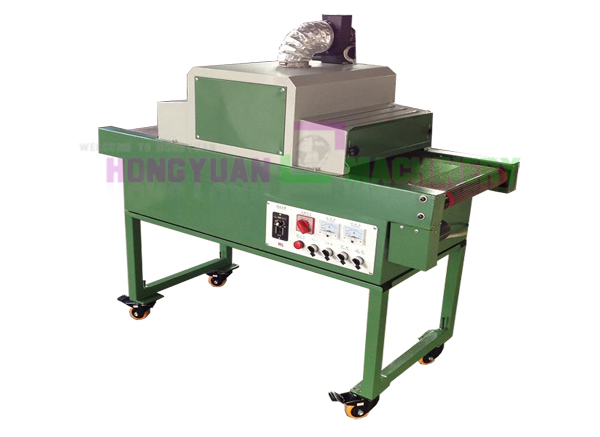

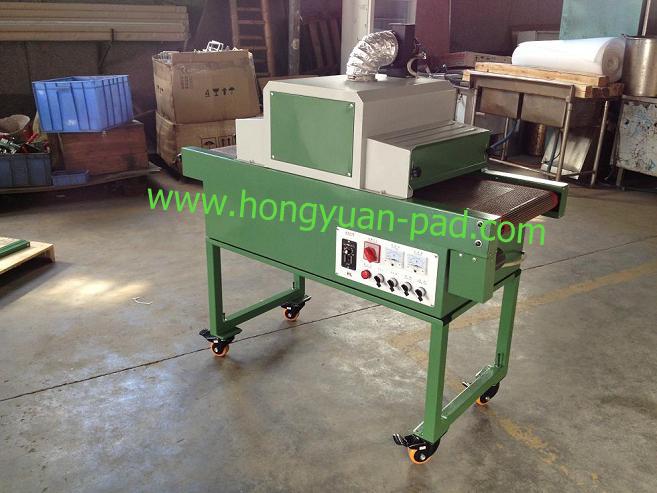

Small UV dryer machine(GW-UV400B)

  • Model number:GW-UV400B
  • Machine size:1200×660×1000mm(L×W×H)
  • Gross weight:190 kgs
  • MOQ:1 set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 7 workdays
  • Worktable size:400 mm conveyor belt

  Application:

The UV curing machine with conveyor belt, is used in cellphone crust, compact disc, thin film switch, electronic and plastic crust UV surface to painting, kinds of UV paint, IMD injection products curing. Morever, it also can be used to cure electronic components, liquid crystal film, terminal gumming, cellphone parts sticking and LCD etc. The machine with small volum, light weight, precise making, convenient moving.


technical parameter:

1.Outside dimension:1200×660×1000mm(L×W×H);
2.The length of inlet:250 mm;
3.The length of output:250 mm;
4.The height of inlet point:100mm;
5.The width of conveyor belt:400 mm;
6.The material of belt:teflon (imported);
7.Light tube power:2.0KW *2PCS
8.The width of light shine:400mm;
9.Convey motor:25W  1:15;
10.Convey speed :0-12m/min( can be adjustable)
11.Decorative style: injection;
12.Power supply:220v 60 Hz single phase
