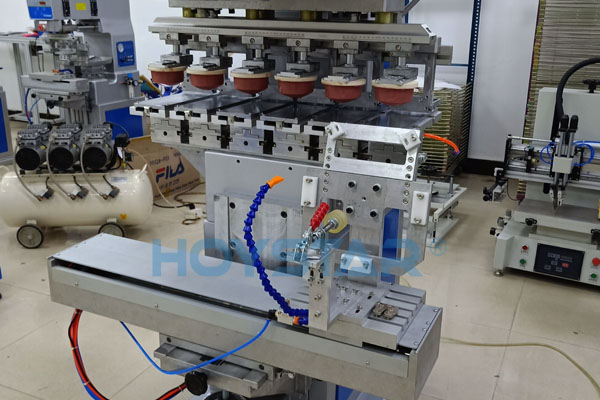

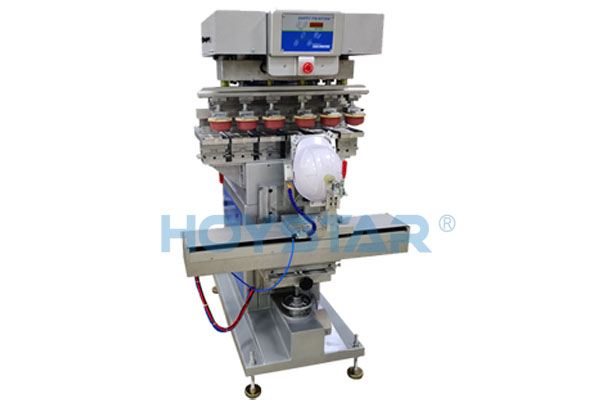

6 Colors Pad Printing Machine for Hard Hats(GW-M6/S-M)

Model number:GW-M6/S-M
Printing area:100*200MM
Printing speed:1000PCS/HR
Gross weight:350KGS
MOQ:1set
Payment terms:T/T or Western Union,or Paypal
Package way:plywood box
Delivery way:by Ocean or By air
Lead time:within 15 workdays after your order confirmation

6 Ccolors Pad Printing Machine for Hard Hats(GW-M6/S-M)

Application:

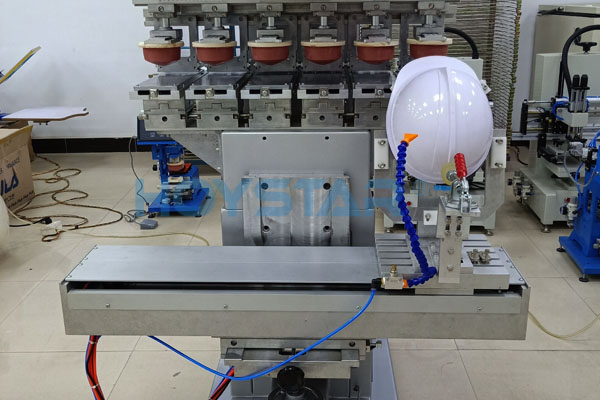

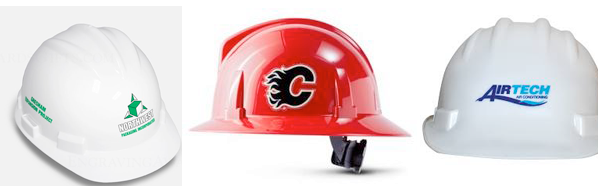

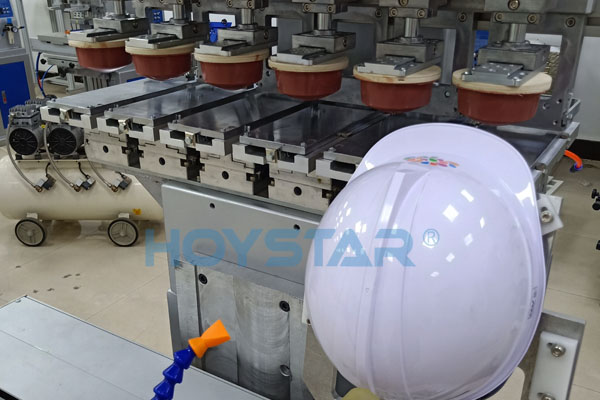

this kind machine is specially designed for printing hard hats,it can complete 6 colors after one printing circle.This kind machine is easy to install and operate.Sure,besides hard hats,the machine also can print another products.

Function:

1. SCM IC complile action program,kinds of printing model option
2. Auto 4-digit counter built-in,and stat. Printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. Worktable, printing head and ink tray can be adjusted X.Y.Z direction
5. Sucking ink and the pressure of printing pad can be adjusted independently .
6. scrapper stroke can be adjusted
7. It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8. The speed of all the cylinders have an independent regulator intortum
9. Adopts original Japan SMC and Taiwan MINDMAN pneumatic component
10. Each adjustable location has scale logo
11. Unique machine body hold-up design,it is convenient to adjust machine and change steel plate
12. it has the function of forbiding the pad fallen when no air pressure enter into
13.The machine is running fastly,it is steady and low voice
14.installing auto hot-air system, adjust temperature

Technical parameter:

1.Steel plate size:100*200mm

2.Printing speed:1500PCS/Hr

3.Power:220V/110V　50-60MHZ　|　1000W

4.Air pressure:5-7BAR

5.Action model option: fully automatic/semi-automatic/ manual/Self-Programming
6.Start-up method:panel/foot switches
7.Scraper working style:Pneumatic mechanical valve drives cylinder up and down
8.Scraper pressure control: pressure regulating valve

9.front/back distance：200MM
10.up/down distance：75MM
11.Max.printing area：80*170MM
12.central distance between Ink tray :127mm
13.repeat prcision:＜0.05MM
14.rinting workstation: 18 PCS
15.fixuping clamp method：T-slot table, code pressure compress heavily
16.choosing the material of clamp: Automobil Putty/ Aluminum/bakelite /plastic/steel
17.astic fastness style: by wooden bolt
