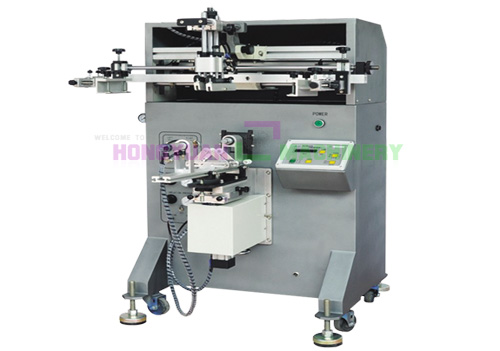

Screen printer for cylindrical product(GW-2A)

  • Model number:GW-2A
  • Printing area:240*200mm
  • Printing speed:1200PCS/Hr
  • Machine size:720*900*1280mm
  • Gross weight:95kgs
  • MOQ:1set
  • Payment terms:T/T,Paypal,Western Union,L/C
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 7 workdays

Application:

It is a small size curved screen printer, It print fastly with steady quanlity and lower voice. It is suitable for printing cosmetics, containers,bottle, cup, food pakages and other curved products’ surface. At present, lot of domestic factories use this machine its small volum, wide usage and lower price

Function:

1. All function is controlled by Mico-computer,high automatic and easy operation
2. Auto 4-digit counter built-in
3. it can print rounds and conicals products
4. in order to meet kinds of printing requirements, the printing stroke and speed can be adjusted
5. You can adjust work-table by vertical, transever, or level orientation. High printing precision, convenient and fast adjusting.
6. controlling by pnematic printing scrap with pressure adjusted system
7. reliable and steady mico-computer controlled system
8. showing work conditions at any time by clear LCD
9. good quanlity Korea sensor and perfect alarm system
10. convenient foot switch, operated simply, maintained conveniently
11. high quanlity alloy die-cast parts and wearable imported bearing
12. controlling the speed of print and reclaim ink independently
13. it can print the products with soft outside, as the printing seat have the function of huff
14. it has special clamp for round and flat products

Technical parameter:

1.Max.printing speed:1200PCS/Hr

2.Power:220V/110V 50-60MHZ | 200W

3.Air pressure:5-7bar

4.Start-up method:panel | foot switches
5.vertical driving style: pneumatic
6.transeversa driving style:pneumatic(common cylinder)
7.vertical stroke: 100MM
8.transeversa stroke: 250MM
9.max.printing area: 240MM (the length of circumference and cambered surface) * 200MM (width)
10.Max printing diameter :  ¢70MM
11.max length of products: 250MM

Printing samples:
