Stock 1 color non slip socks rotary screen printing machine

Date: 2017-04-21   Clicked: 375

From Tiffany:

We have stock in hand of the 1 color non slip socks screen printing machine,the total of have 8 pcs workstation,come equipped with 4 pcs drying device.

If you are interested in this machine,please send email to sales04@hongyuan-pad.com .


About the details information of the machine,please check the below:

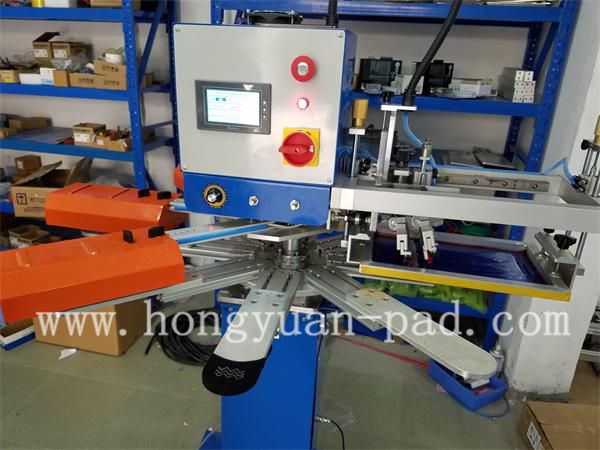

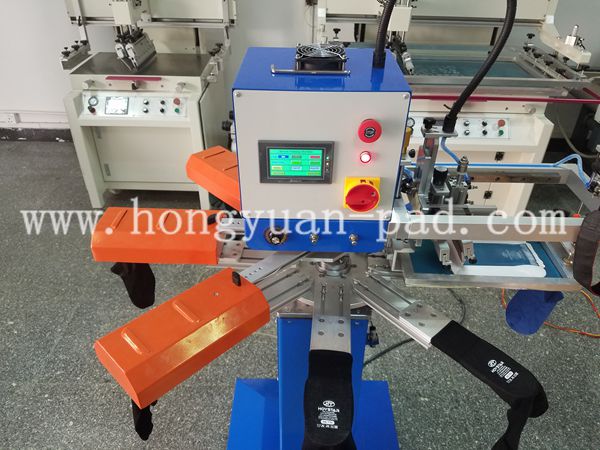

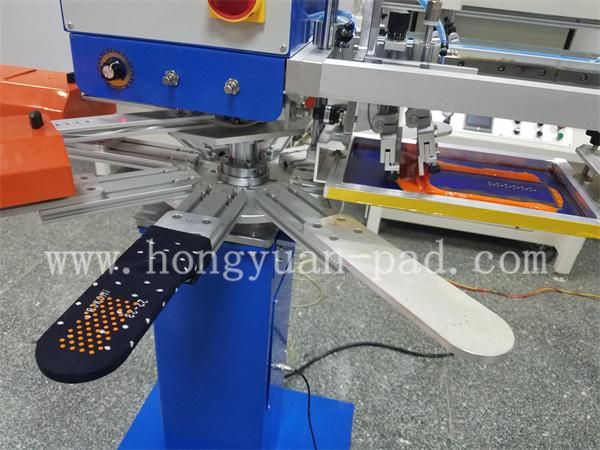

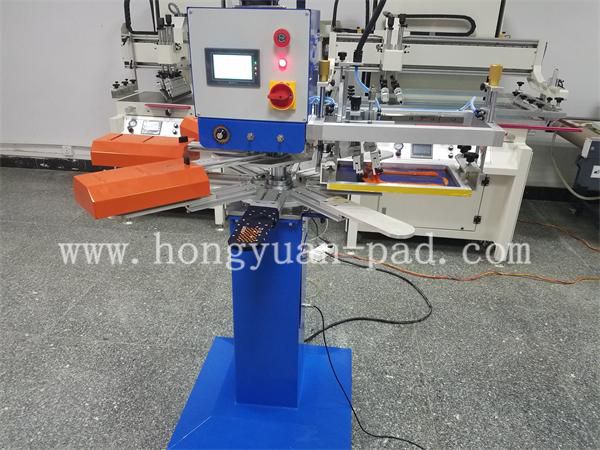

Stock 1 color non slip socks rotary screen printing machine


Application:

high rapid sock screen printer in textile knitting industry,the speed can be up to 1200 PCS/Hr,it is suitable for printing garment tagless,sock or label,rotary worktable,very convenient to load or unload products,lots of customers like it very much because of high quality and low price.

Function:

1.PLC controlled,user friendly interface,clear function display and easy operation

2.Flat screen printing with infrared drying system.Suitable for different types of ink and small area screen frame printing such as T-shirt collar

3.Five station driven by step motor to insure stable and smooth running

4.Angle and height of squeegee and flood blade can be adjusted to insure consistent printing pressure

5.Adopts 8 stations rotary worktable,one for substrate loading and one for printing,4 workstation for drying and one for substrate unloading and five stations working simultaneously

6.With one cycle and auto function and switch easy

Technical parameter:

1.Max.printing area:130*100 mm

2.Printing speed: 1000-1200 PCS/Hr

3.Power: 3.6KW,12 pieces IR lamp

4.Machine size:1000*920*1450 mm

5.Weight: 120 kgs

6.Workstation: 8 pieces

7.Drying system: 4 set



non slip socks screen printing machine


anti slip socks screen printing machine


non slip socks printing machine


socks screen printing machine
