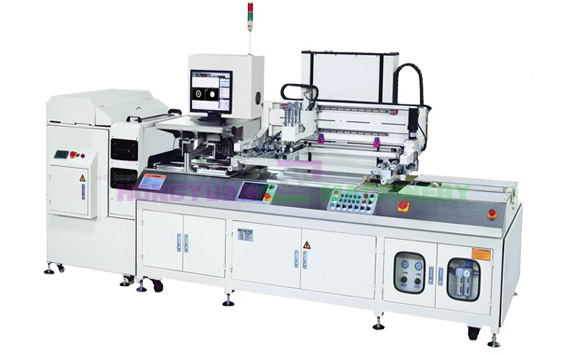

Automatic PCB Screen Pringting Machine(GW-5070ATC)

  • Model number:GW-5070ATC
  • Printing area:500*700mm
  • Printing speed:600 pieces per hour
  • Machine size:L3000*W1450W*H1750mm
  • MOQ:1 set
  • Payment terms:T/T,western union, paypal
  • Package way:plywood
  • Delivery way:by sea
  • Lead time:within 20days
  • Worktable size:600*700 mm

Automatic pcb screen printing machine


automatic feeding--in addtion to static dust--automatic feed ---alignment---automatic print---discharge .

Machine accessories top configuration, France,Italy and Japan Brand parts.

CCD auto-alignment system , imported from Japan.

Servo motor and servo motor from the network printing, off-grid synchronization functions,to prevent the phenomenon of sticky web .

Multi-valued image processing system , Graphics are not restricted, Graphics can be used for any traget .

Motor servo drive printing, fast and smooth, accurate printing to ensure correct.


professional to rigid printed circuit bpard,circuit,solder mask green paint, text and hard surfact material ,pcb, pcb board, hard surfact board, box board, hard paper for print jobs.

Technical parameter:

Max.print size:500*700mm

Max.frame size:900*1150mm

Worktable size:600*700mm

Printing speed "550piece/hour

CCD alignment accuracy:+-0.005mm

stock thickness:0.8-10mm

machineical repeatability:+-0.01mm

manifold air pressure:0.5-0.6Mpa

Electricity:380v/3kw 3p

Machine extemal (dust machine):L1200*W1000*H1200mm

Overall the machine(press):L3000*W1450W*H1750mm
