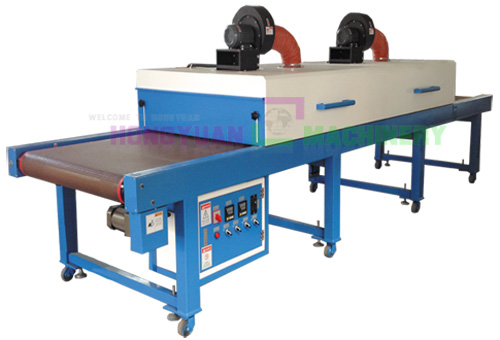

Large Infrared Dryer Machine With Conveyor Belt (GW-1000LH)

  • Model number:GW-1000LH
  • Machine size:5000*1300*1500mm
  • MOQ:1 Set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:by wooden box
  • Delivery way:by sea
  • Lead time:Within 3-7workdays after get client's deposit

Large Size Tunnel Inf  rared Dryer Machine For Drying T shirt


It is suitable for drying kinds of materials products such as textile,flag,banner,aluminum sheet,glass,paper,plastic...etc  after screen printing/painting/hot setting adhesive,inkjet printing..,..etc

Machine design principle:

 it is designed for lab and mass production.This conveyor belt system has quiet varying-speed motor,when the dryer is various loads, speed -adjusting driver and the speed of conveyor are Uniform,the height between belt and lamps can be adjusted,it is suitable for kinds of items which have different size.

Technical Parameter:

Machine size: 5000*1300*1500mm

Inlet length: 1000mm

Outlet length:1000mm

Heating area: 3000mm

Belt width:1000mm

Max.conveyoring height:100mm( it can be adjustable)

Material of belt: Teflon


Lamp: Infrared lamps 20pcs

Temperature:200 degree

Lamp wattage: 1kw*20pieces

Power : 380V 50HZ


1.Hot heat room with shelter door which can be adjust open/closed to save energy.

2.Infrared lamps quantity can be adjust by your needs

3.Conveyor belt by electric motor control,high speed can be adjust according to production speed needs

4.There install hot air recycle system on top of machine.

5.Max temperature 0-200degrees can be adjust by your production needs

6.Machine Inlet/outlet can be adjust height up/down according different products height.

7.Every accessories distance/size can be adjust separate by panel bottom
