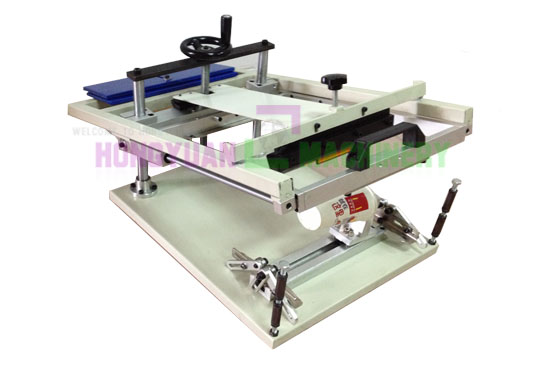

Manual Cylindrical Screen Printing Machine(GW-Q1)

  • Model number:GW-Q1
  • Printing area:200*100mm
  • Printing speed:500PCS/Hr
  • Machine size:680*310*220mm
  • Gross weight:25kg
  • MOQ:1set
  • Payment terms:T/T,Western Union,Paypal

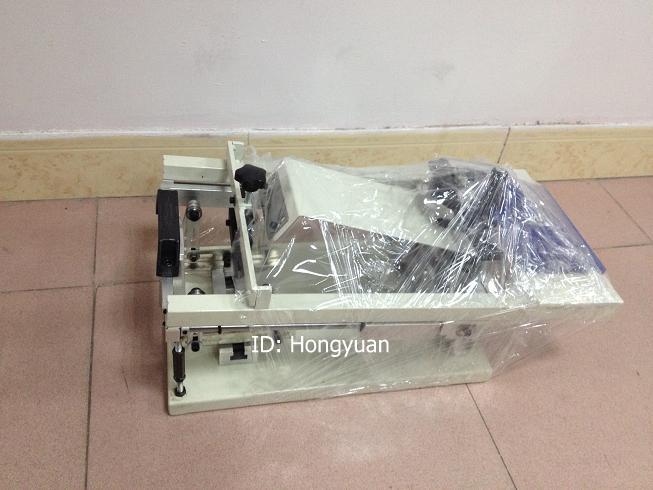

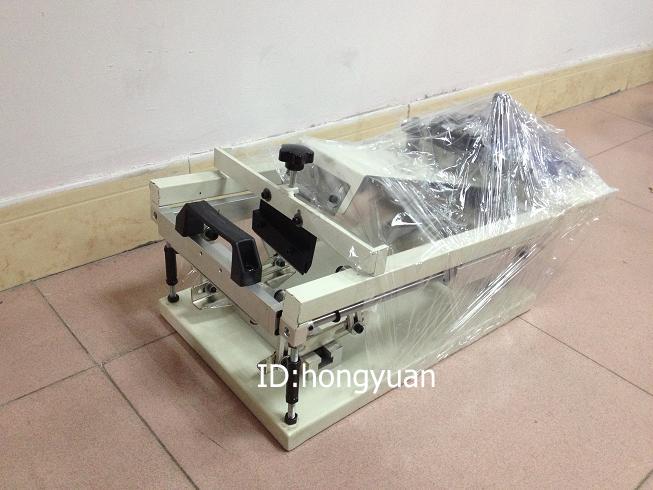

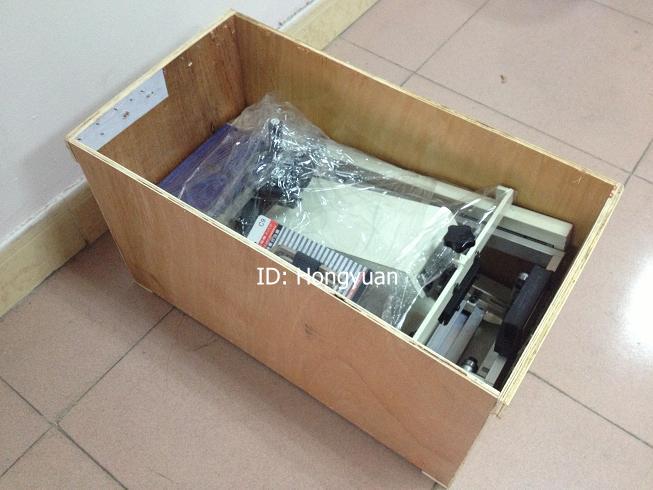

  • Package way:plywood
  • Delivery way:by sea or by air or by express
  • Lead time:within 7 workdays

Plastic cup/bottle manual screen printing machine

Application

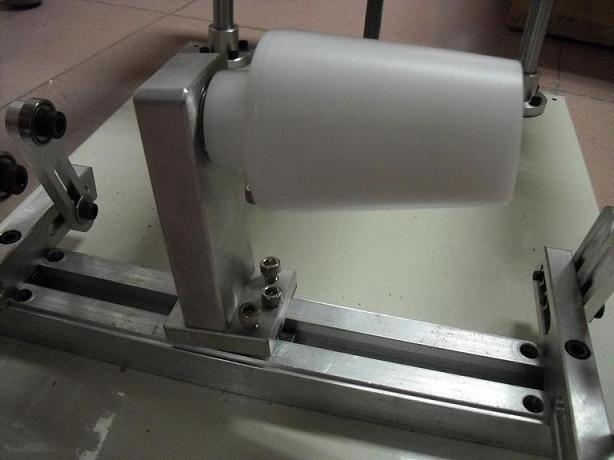

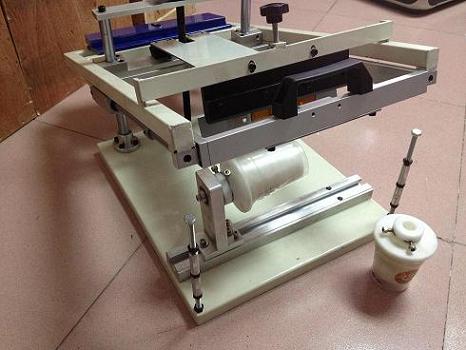

Manual curved screen printer,simple structure,easy operation,the width of worktable can be adjusted to meet different diameters,it is suitable for printing single color on the surface of cylindric products,such as water breaker,bottles,pens,cups and so on.there are five models to choose


Function:

1.it is suitable for printing cylindric product,manual operate

2.It is suitale  for single color printing all kinds of cylindric product

3.Easy adjustment,easy operation, Nicely reliable

4.Using metal screen frame or wooden screen frame

5.Screen frame can be adjusted up and down


Technical parameter:



1.Model:GW-Q1

Max.printig diameter:φ60MM

Max.printing girth: 200MM

Max.printing area: 200*100MM

Frame size: 320*210MM

Package size: 680*310*220MM


2.Model:GW-Q2


Max.printig diameter: φ160MM

Max.printing girth: 200MM

Max.printing area: 200*240MM

Frame size: 320*370MM

Package size: 680*480*350MM


3.Model:GW-Q3


Max.printig diameter: φ160MM

Max.printing girth: 300MM

Max.printing area: 300*240MM

Screen frame size: 460*370MM

Package size: 830*480*350MM


4.Model:GW-Q4


Max.printig diameter: φ300MM

Max.printing girth: 300MM

Max.printing area: 300*400MM

Screen frame size: 460*560MM

Package size: 1000*660*350MM


5.Model:GW-Q5


Max.printig diameter: φ400MM

Max.printing girth: 500MM

Max.printing area: 500*400MM

Screen frame size: 560*750MM

Package size: 1320*680*620MM
