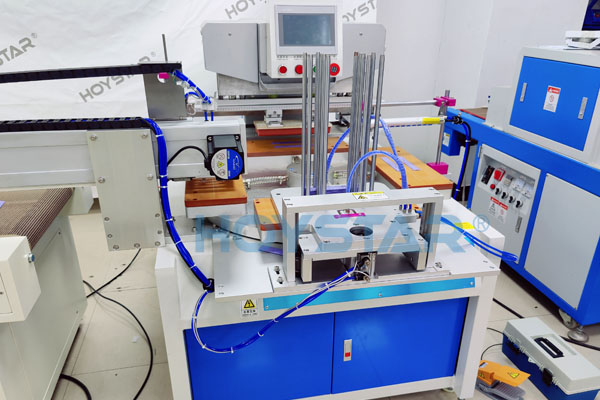

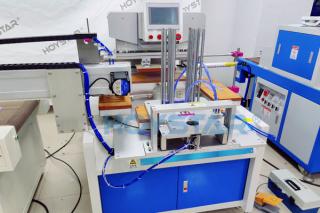

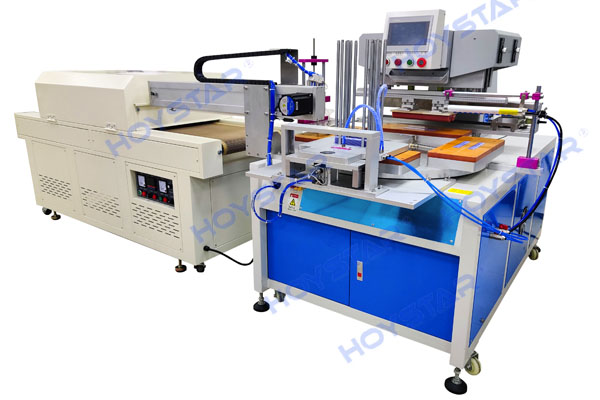

Automatic Stationery Ruler ,Protractor , Triangle ruler pad Printing Machine

Application:

This kind machine is high precision rulers pad printing machine,with high speed rotary worktable, can run in high speed without any vibrations.Auto feeding,auto discharding,During printing process,you can put or take off the products,reduce machine down time.Max.printing speed can be up to 2000PCS/Hr,mainly applied to printing rulers, equilateral triangles rulers, Delta rulers, Protractor etc stationery products in large quantities

Function:

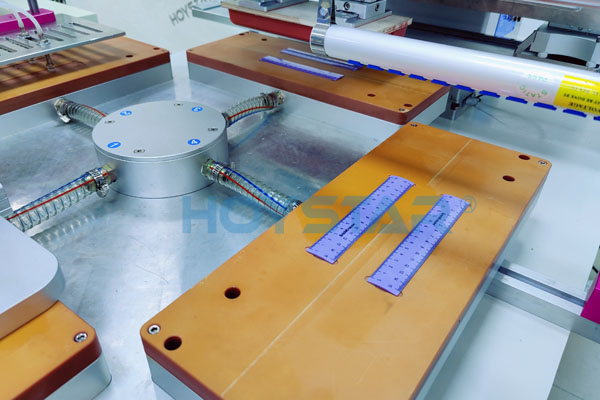

1.Speed cam splitter architecture rotary wortkable

2.Worktable can be adjusted slightly, you can adjust on X.Y direction

3.High strength large capacity vacuum tube adsorption

4.Various stationery rules does not require making jigs, quick change

5. No product,no print

6. auto feeding--auto printing--auto unloading--auto drying

7. The whole machine runs fastly, smooth, noiseless

Technical parameter:

Printing Speed: 1000 times / Hr(It can print 2pcs of rulers at one time)
Workpiece size: within 300mm rulers

Usage scope: W40*L300mm

Wokrtables: 4PCS

Machine size: 1350*1250*1650mm

Weight: 550kgs

Power:220V

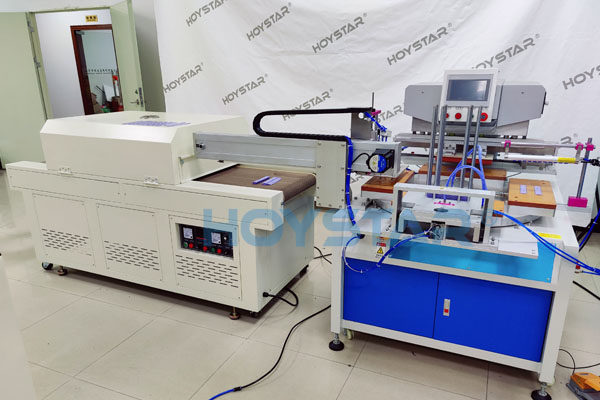

IR dryer techinical parameter:

1) Conveyor belt width： 500mm

2) Inlet length： 600mm

3) Outlet length： 400mm

4) Chamber length： 1000mm

5) Total length of conveyor belt：2000mm

6）Conveyor belt material: Teflon

7）Conveyor belt speed: 1-10M/mitues

8）Infrared Lamps: 800w*6pcs

9）Temperature: 0-180 degree

10）Machine size: 2000*900*1100mm

11) Voltage: 220V
