Big Two Color Pad Printing Machine For Printing Heels(GW-M2/Y)

  • Model number:GW-M2/Y
  • Printing area:130*330mm
  • Printing speed:400pairs/Hr
  • MOQ:1set
  • Payment terms:T/T,Western Union or Paypal
  • Package way:plywood
  • Delivery way:by ocean or by air
  • Lead time:within 20 workdays

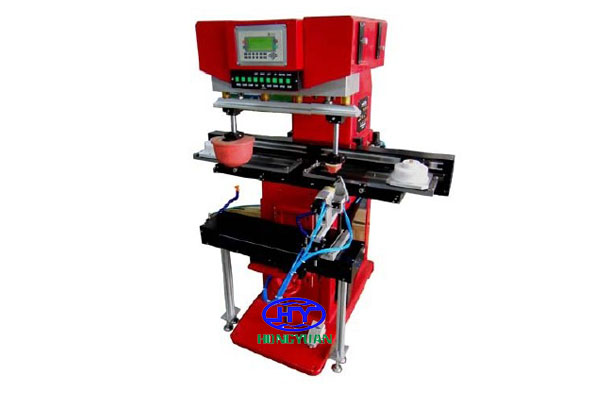

Big two color pad printing machine for printing heels


The two color shoe heel pad printing machine is special for printing high and small heels. It can print both sides of heels at one time, improving printing efficiency.

Technical Parameter:
1. Model:GW-M2/Y
2. Printing color: 1/2 color
3. Steel plate size: 170*580mm
4. Max printing area: 130*330mm
5. Closed ink cup: 140mm
6. Printing speed: 400pairs/hr
7.PLC controls,kinds of printing models
8. Power: 110/220V
