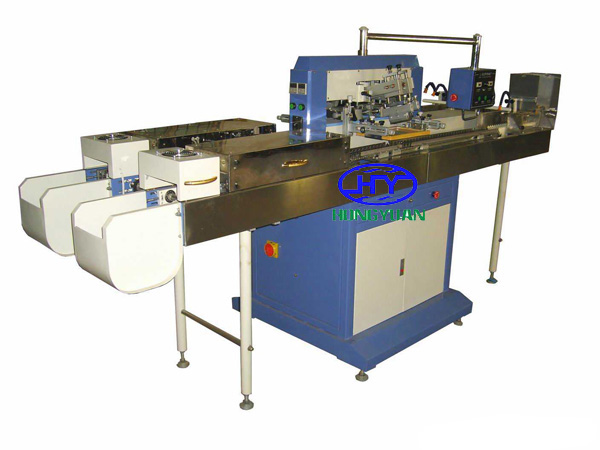

Automatic 1 Color Screen Printing Machine For Pens(GW-2P)

  • Model number:GW-2P
  • Printing speed:6500pcs/Hr
  • Machine size:3000×1120×1520mm
  • Gross weight:450kgs
  • MOQ:1set
  • Payment terms:T/T,western union or paypal
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 20 workdays

One color automatic machine silkscreen printing for pen barrel

Application:

Full electric control, without compressed air, automatic loading and discharging, you can print one piece at a time,and also can choose to print 2 pcs of pens at a time.running smoothly, without noise, printing stroke and speed can adjusted freely, Taiwan Inverter control running, ensure the printing effect to be consistently.Adopt IR infrared or UV drying systems, printing and drying is completed at the same time.It is widely used in pencils, ballpoint pens, lip balm, medical syringes, chopsticks and other monochrome for high-speed printing of an object.

Technical parameter:

Printing diameter: φ3~φ20mm
workpiece length:70-200mm
printing stroke:20-80mm
Max.printing speed:6500PCS/Hr
Power:220V 50Hz
Wattage:4.5kw
Printing colors: 1 color
Machine size: 3000×1120×1520mm
Machine weight:450kg
