Automatic 2 Colors Napkin Screen Printing Machine(GW-200TRS-NP)

  • Model number:GW-200TRS-NP
  • Printing area:130*100MM
  • Printing speed:1200PCS/HR
  • Machine size:1600*1400*1650MM
  • Gross weight:280KGS
  • MOQ:1 unit
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:plywood case
  • Delivery way:by sea or by air
  • Lead time:within 45 workdays after your order confirmation and deposit

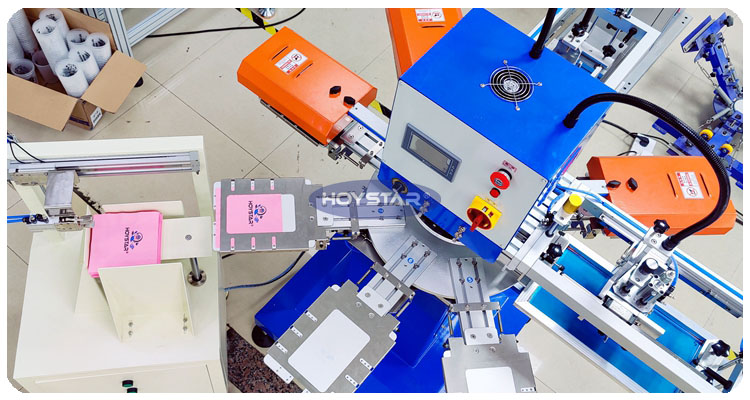

Automatic 2 Colors Napkin Screen Printing Machine


This high rapid screen printing machine is specially designed for printing Napkins automatic screen printing machine,its printing process like below: load the Napkin on the machine by hand---auto printing 1 color--auto drying--auto print 2 color--auto drying--auto unloading-auto products collection

Technical parameter:

1) Max.printing area:     130*100mm

2) Printing speed:         1200PCS/Hr

3) Workstaion:              8 pieces

4) Drying system:         3 pieces

5) Print colors:              2 colors

6) Power:                     220V/4.5KW

7) Machine size:          1500*1400*1650mm

8) Weight:                    260kgs


1) Machine control part adopts MITSUBISHI PLC controller,Touch screen control,easy to operate 2) Three printing model to choose,manual/semi-auto/full-auto,printing Interval time is numerical control 3) The rotate worktable adopts electric control,CHINT AC contractor, Taiwan FOTEK photo-switch 4) Drying system lamp brightness can be adjusted,like this,it can meet different temperatures needing 5) High quality infrared lamps,it can be up to 1500-2000 hours 6) It has"No product,No print"function,you can open and stop machine freely during printing,Product sensors can be 360 degrees adjustable 7)  It has total 8 pcs of work station,2 pcs of printing work stations,3 pcs of drying systems and 3 pcs of load/discharging work stations 8) The 2 printing head can be controlled independently 9) Pneumatic components control adopts Taiwan brand,front and back printing precision linear Guide rails using Taiwan brand. 10) Machine surface is metallic paint ,beautiful and dignified

Details Images

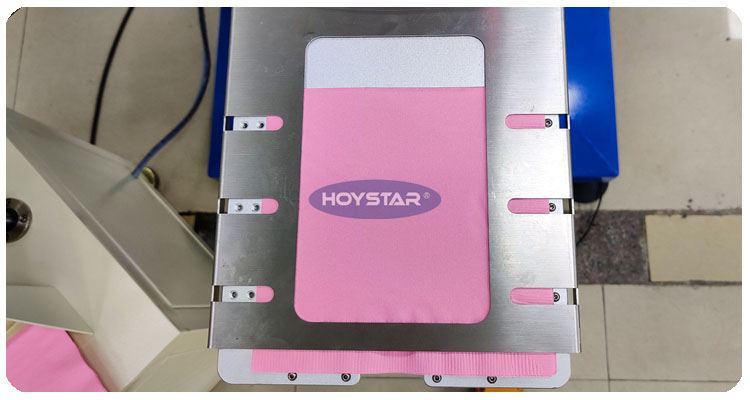

Fixture to hold the napkin

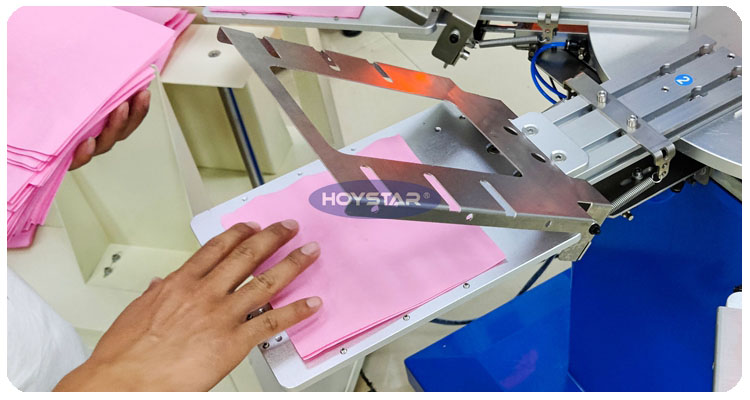

Loading napkin by hand

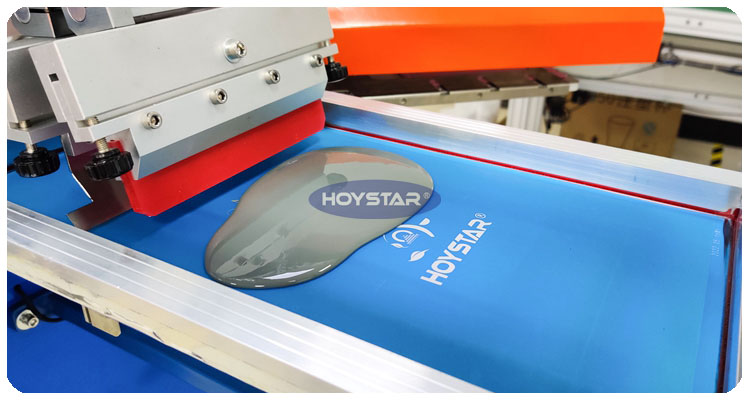

Screen frame with pattern,we can help you to make it if needed

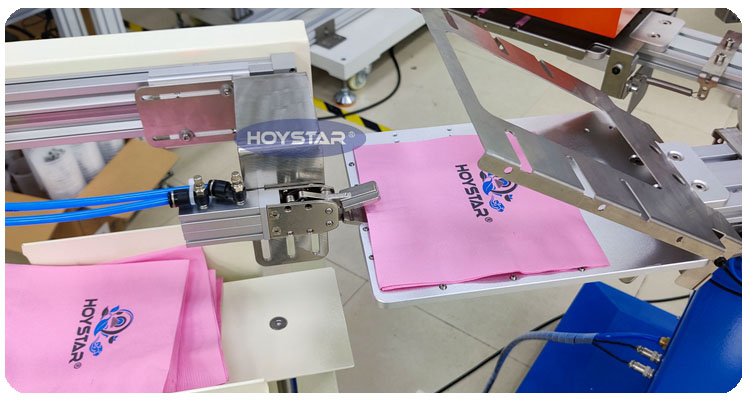

Auto unloading system

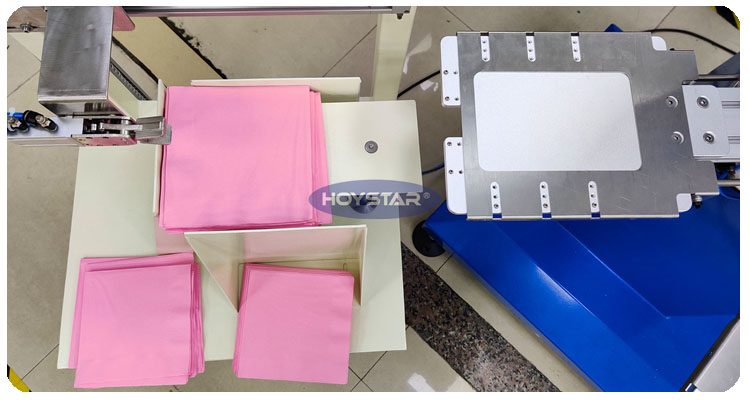

Blanking table

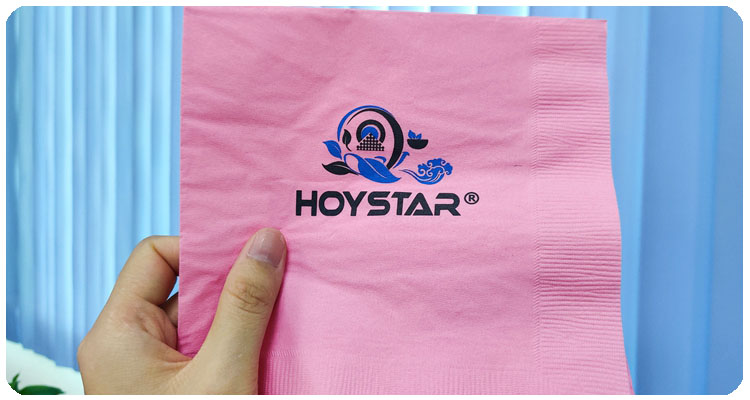

Printed samples show
