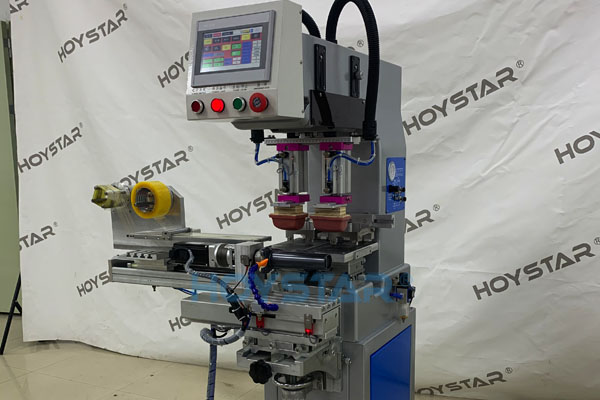

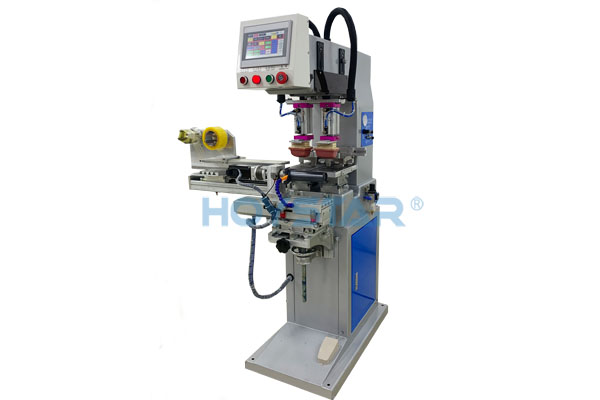

2 Colors Pad Printing Machine with Rotary Fixtures (GW-P2S-R)

  • Model number:GW-P2S-R
  • Printing area:80*80mm
  • Printing speed:1000times/Hr
  • Machine size:1120×1060×1629mm
  • Gross weight:275kgs
  • MOQ:1
  • Payment terms:T/T
  • Package way:plywood
  • Delivery way:By Ocean
  • Lead time:15 workdays
  • Worktable size:190*238mm
Application This is a medium-sized two-color rotary pad printing machine. This model has a wide range of applications. It is a two-color pad printing machine selected by many manufacturers at present. and this machine is shuttle worktable,the printing head is independently,like this,it can print the products which size is larger, It is suitable for electronic products and handicrafts, Logo printing on the surface of toys and other products.
Function 1.PLC+touch screen control
2. automatic four digit counter to count the printing quantity
3. aluminum with metal baking paint on the surface
4. the position of worktable, silicon head and ink tray  pan can be adjusted arbitrarily along x.y.z axis
5. print pressure can be adjusted independently

6. the ink scraping stroke is adjustable

7.it is with auto silicon pad cleaning system,like this,it can improve printing speed

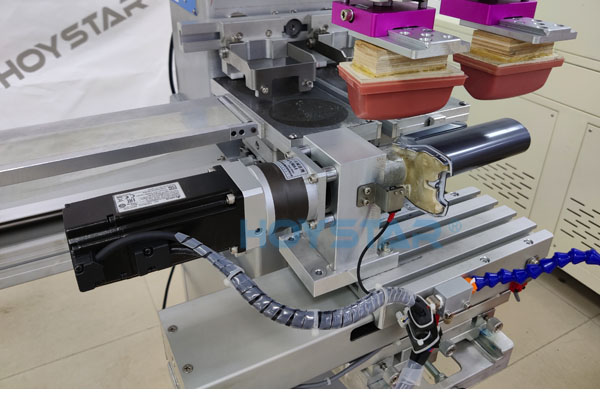

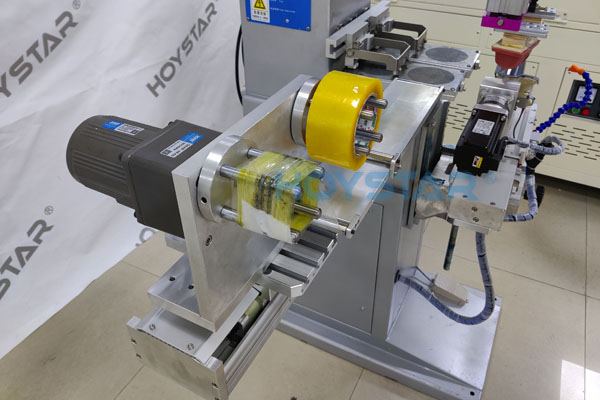

8.the fixtures can rotate, like this,it can print both sides of the products

Technical parameter Up and down stroke of cylinder: 100mm
Front and back stroke of cylinder: 250mm
Steel plate size: 200 × 100mm
Worktable area: 190 × 238mm
Height of Large Print: 330mm
Large print diameter: Φ 90mm
Large pad printing speed: 1000pcs/hr
Air pressure: 5-7bar
Air consumption: 414litre/min
Power: 110/220v 60/50hz 50W
Machine size: 1120×1060×1629mm
Weight: 275kg
Printing samples
