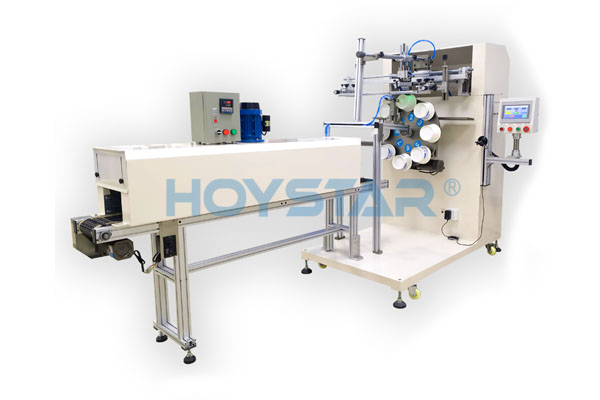

3/4 Automatic Screen Printing Machine for Cups(GW-2A-S)

  • Model number:GW-2A-S
  • Printing speed:1500PCS/Hr
  • Machine size:295*140*165cm
  • MOQ:1 set
  • Payment terms:T/T
  • Package way:polywood box
  • Delivery way:by Ocean
  • Lead time:within 20 workdays

Allication:

This kind screen printing machine is specially designed for printing the Disposable Cup, it is 3/4 automatic machine,manual loading---auto printing-----auto unloading---IR drying

Function:

1. Manual feeding,With laser point alignment device

2. Locating automatically to keep printing precision

3. No product without printing system, keep printing stable

4. High and strong vacuum system, keep printing precision

5. PLC and touching screen control system. Digital control system,can set parameter randomly,operate easily with big function

6. The four angle of screen frame holder can be adjusted, keep the balance between screen frame and worktable, also make sure the layer of printing ink is even

7. Printing angle, printing pressure and screen distance are easy to set. The change of squeegee and flood bar is controlled by precision guide, keeping the vertical precision, working smoothly

8. With emergency switch to keep safe and stable

9. Locating several workstations by Taiwan precision rotary locating with stable, fast, improving efficiency

10.The loading system is rotary type. like this,it can save time

Technical Parameter:

Max printing diameter
130mm
Max length of products
200mm
Power
220V 50HZ
Air pressure
5-7bar
Loading mode
manual
Unloading mode
Automatic
Drive mode of rotary table
Electric
IR drying system
500W/PC*8PCS(IR lamp)
