Vacuum Flat Screen Printing Machine(GW-6090)

  • Model number:GW-6090
  • Printing area:600*900mm
  • Printing speed:1000pcs/hour
  • Machine size:1520*1100*1430mm
  • Gross weight:850KG
  • MOQ:1 Set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:by wooden box
  • Delivery way:by sea
  • Lead time:Within 3-7workdays after get client's deposit
  • Worktable size:700*1100mm

Silk Screen Road Sign ,Business Card Screen Printing Machine


It is suitable for printing different material flat items such as textile,paper/leather bag,circuit/pcb plate, glass/aluminum/metal/arylic board,PP/PVC/PET/PC/PE film,ceramic tile,traffic/road sign...and so on.


1. Controlling machine by PLC programming controller
2. Auto 4-digit counter built-in,all of machine conver both produce by metal material,high quality.
3. Vertical adopting distyle constructure,screen frame up/down and printing head left and right both control by high precision electrical servo motor drived independently.
4. Controlling printing blade up and down by transducer system,controlling stroke by photocell eye.
6. You can be free to choose printing cycle according to your printing craftwork by printing action.
7. Manula/semi auto/full auto 3 settings up.When printing is indirect,it will be controlled by digital.
8. Machine with vacuum worktable,it can fix the product better and printing quality precision when printing it.
9. Unique designed machine head up and down equipment,it is convenient to clean scraper,blade,screen frame.
10.Double guide pole controlling screen arm,installing the device for adjusting screen distance,regulated conveniently
11.Installing scramming device on work-table, it accord with safty standard.

Technical Parameter:

1.Max.printing area:600*900mm

2.Max.printing speed:1000-1500PCS/Hr

3.Power:380V 50HZ

 4.Air pressure:5-7bar
5.Machine size: 1520*1100*1430mm

 6.Net weight: 690KG
7.Worktable size:700*1100mm

8. Max.sreen frame size: 750*1300MM
9.Machine Package size: 1700*1200*1900mm

10.Package weight: 850KG
11.Max.workpiece height:50mm
12.Number of Color: single color

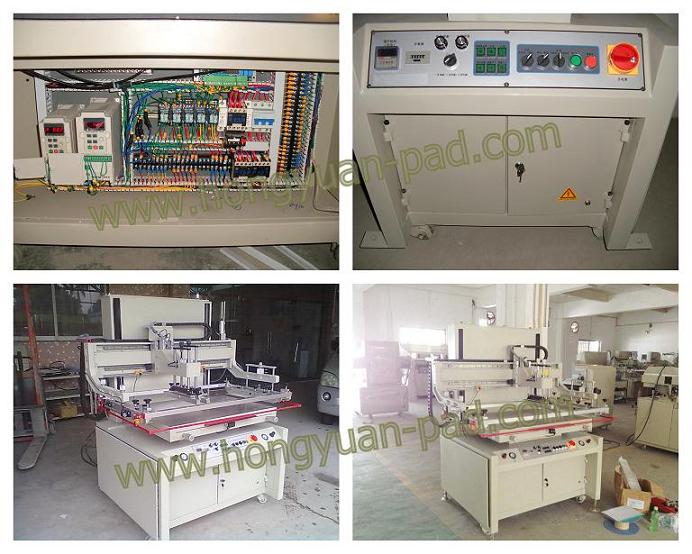

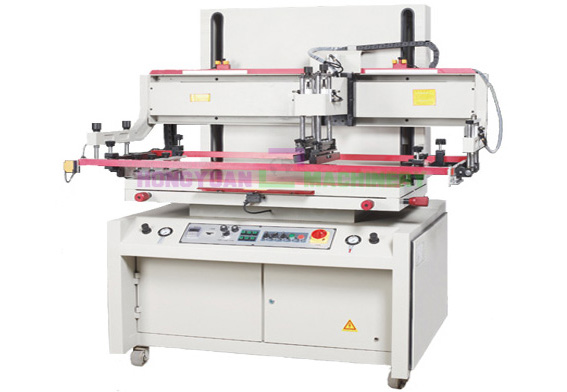

Machine pictures:
