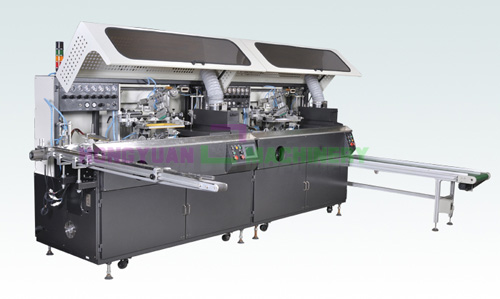

Cup/mug/bottle cylindrical screen printing machine

Application:

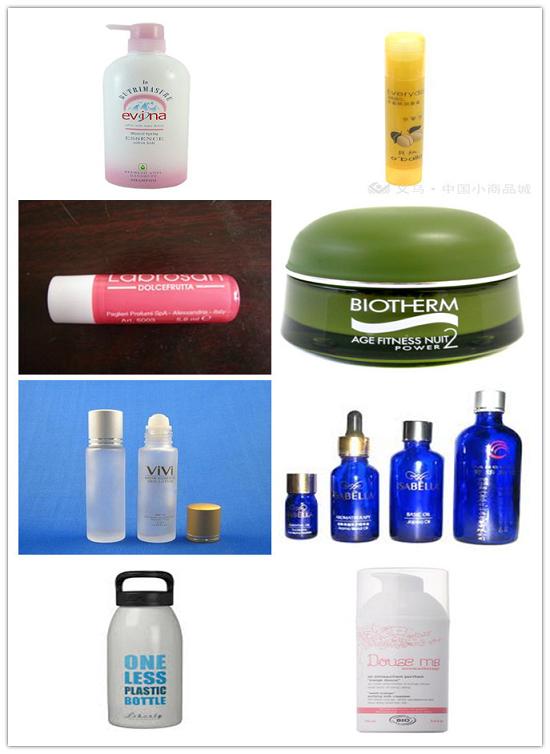

This printing machine is suitable for printing some round and oval containers,such as cosmetic,leechdom and food service industry. It can print kinds of design on the surface of round/oval container.The material of workpiece can be plastic,glass,ceramic,metal and so on

Function:

1.GW-2A-UV fully automatic screen printing production line can be print from single to two color,the fast printing speed can be up to 3600PCS/Hr
2.The control system of all production line is made up of advanced modular design PLC and easy operation TOUCH SCREEN; Rotating part of this printing machine adopts import motor and its matched gear-box, it has kinds of control function,such as flame treatment, fully automatic rise and drop printing head, no-stage timing, quick/slow mechanical drive, automatic contraposition in advance, no printing without product and so on. It can meet a variety of containers in the printing requirements. The function of  no workpiece no printing can ensure machine high-fast printing continuously,Automatic flame treatment equipment can change Organizational Structure of container surface to make sure ink fastness

3.This printing machine is production line which is made up of GW-2A-UVautomatic screen printer and GW-UV curing oven,it appears the advantage of our automatic products. At the same time,it can inspect defective products before ink curving and print again,this is the big characteristic . photolectric
inspection conveyor stop function can reduce the container damage

4.GW-UV curving oven equiped with import UV curving systerm from UK ,the UV intensity can
 be adjusted high, medium and low

Technical parameter:

Printing diameter(for round products): 20mm~120mm
Printing height(for round products): 20mm~280mm
Printing diameter(for oval products): R40mm~R180mm
Printing height(for oval products): 20mm~280mm
Max.printing speed: 3600Pcs/Hour
Control system: PLC And Touch Screen
Power: AC380V 3Phase  50Hz 5.5KVA/
Machine size:1800mm ×1100mm ×1600mm
Weight: 950KG
