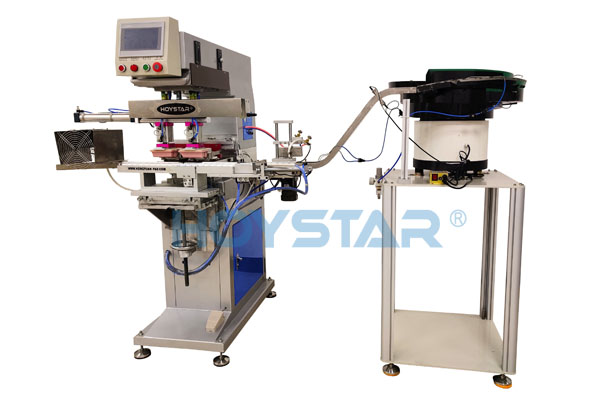

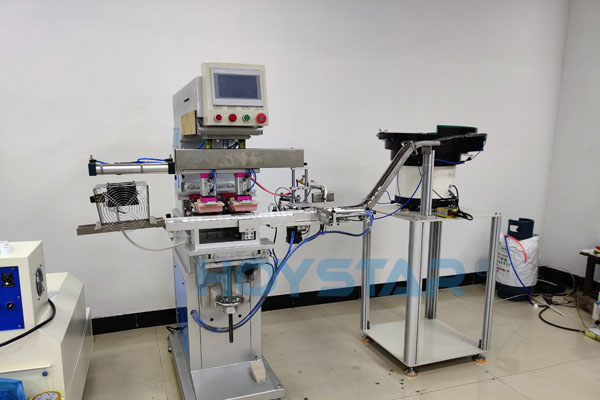

Automatic 2 Colors Bottle Caps Pad Printing Machine

  • Model number:GW-P2-C
  • Printing area:110*110mm
  • Printing speed:7200PCS/Hr
  • Machine size:1450*1200*1680mm
  • Gross weight:450kgs
  • MOQ:1set
  • Payment terms:T/T or Western Union,or Paypal
  • Package way:plywood box
  • Delivery way:by Ocean or By air
  • Lead time:within 30 workdays after your order confirmation


This machine is specially designed for printing bottle caps,it is fully automatic,improve production rate largely.and also it is easy toinstall and operate,very steady,high printing speed and beauty printing effect,lots of clients like it very much!

It is automatic feeding--auto flame treatment--auto printing--auto drying--auto unloading


1.PCL+Touch screen control
2.Auto 4-digit counter built-in,and stat. Printing quantity
3.Airframe adopts coin alloy,and metal coating surface
4.Worktable,plastic head and ink tray can be adjusted X.Y.Z direction
5.Sucking ink and the pressure of printing pad can be adjusted independently .
6.The distance of scratching ink is adjustable
7.It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8.The speed of all the cylinders have an independent regulator intortum
9.Adopts original Japan SMC and Taiwan MINDMAN pneumatic component
10.Each adjustable location has scale logo
11.when there is no pressure air into ,it has prohibition of plastic head Down  function
12.The machine is running fastly,it is steady and low voice
13.With hot air system

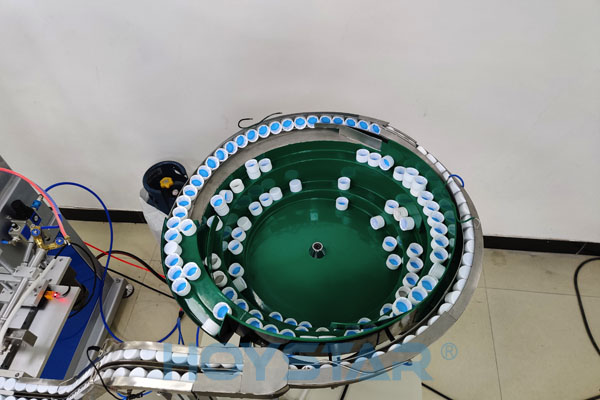

14.automatic loading and unloading system
15.with automatic pad cleaning system

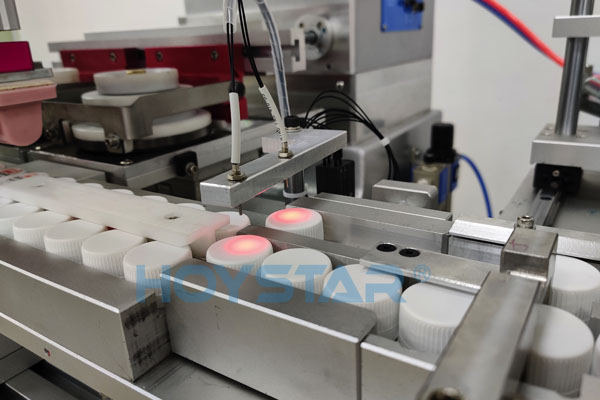

16.with flame per-treatment system

Technical Parameter:

1.Steel plate size:140*300mm

2.Closed ink cup: 120MM

3.Max.printing area:1200times/Hr (it can print 6 pcs of caps at one printing cycle) ,so it can get 7200PCS/Hr

4.Power:220V or 110V

5.Air pressure:5-7bar

6.Colors: 2 colors
