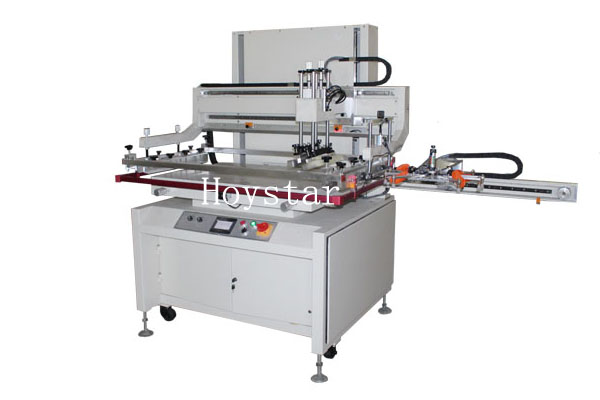

Flat Screen Printing Machine With Auto Unloading System(GW-5070B)

  • Model number:GW-5070B
  • Printing area:500*700MM
  • Printing speed:1500pcs/Hr
  • MOQ:1set
  • Payment terms:T/T,Paypal or Western Union
  • Package way:plywood
  • Delivery way:by sea
  • Lead time:within 10 workdays
  • Worktable size:600*800mm

PCB Silk Screen Printing Machine Screen Printer Frame Printer


this machine suitable for printing some flat items which size is within 400*600mm,such as paper,PVC sheet or bags,plastic film,textile,keyboard,circuit board ,CD disk,plastic box ,ruler etc. it is touch screen,and with auto unloading system


1. PLC controls+touch screen
2. Auto 4-digit counter built-in
3. kinds of printing cycle designed by printing action, you can be free to choose according to your printing craftwork.
4. Airframe adopts coin alloy,and metal coating surface
5.  distyle vertical constructure, high precision, steady operation
6. installing scraper constant pressure equipment
   to make sure pressure is steady when printing
7. the angle of scraper and reclaim blade can be adjusted randomly
8. you can regulate work-table back and forth or right and left, and then fastening it
9. you can regulate screen frame back and forth, right and left or level orientation
10. printing head can be liftuped, that is convenient to pick-and-place sreen frame
11. adopting Germany ORIGA roldless cylinder to drive transversa moving, TaiWai Ruike electronic switch to drive transversa stroke
12. finished and high-strength hard work-table with even suctionhole and high vacsorb, that can make sure overprinting accuratelly.
13. installing scramming device on work-table, in order to avoid injuring hands
14. installing Taiwan CEC absorbers to removing shaken
15. The machine is running fastly,it is steady and low voice
16.It is with auto unloading system

Technical Parameter:

Technical GW-3050B GW-4060B GW-5070B GW-6090B
Max.printing area 300*500mm 400*600mm 500*700mm 600*900mm
worktable size 400*600mm 500*700mm 600*800mm 700*1000mm
Power 380V,50Hz 380V,50Hz 380V,50Hz 380V,50Hz
Air pressure 5-7bar 5-7bar 5-7bar 5-7bar
Max.printing speed 1300-1500PCS/Hr 1300-1500PCS/Hr 1300-1500PCS/Hr 1300-1500PCS/Hr
