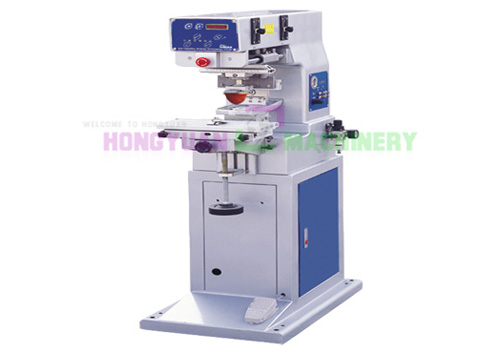

Single Color Pad Printing Machine With Stand(GW-P1)

  • Model number:GW-P1
  • Printing area:80*120mm
  • Printing speed:1000pcs/hour
  • Machine size:1000*500*1500MM
  • Gross weight:150KG
  • MOQ:1 Set
  • Payment terms:T/T,Western Union,Paypal
  • Package way:by wooden box
  • Delivery way:by sea or by air
  • Lead time:Within 3-7workdays after get client's deposit

Semi Auto 1 Color Small flash disk , micro sd card , logo , label Pad Printer

Application:

Medium-sized single color pad printer,it is bigger than MINI series , it can meet the single color printing demand for most of factory,easy adjustment,running steadily. t is suitable for printing electronic product,platic shell,hardware product,stationery,logo on the surface of small arts and crafts and so on.

Function:

1. SCM IC complile action program,kinds of printing model options
2. Auto 4-digit counter built-in,and stat. Printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. Worktable,plastic head and ink tray can be adjusted X.Y.Z direction
5. Sucking ink and the pressure of printing pad can be adjusted independently .
6. The distance of scratching ink is adjustable
7. It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8. The speed of all the cylinders have an independent regulator intortum
9. Adopts original Japan SMC and Taiwan MINDMAN pneumatic component
10. Each adjustable location has scale logo
11.when there is no pressure air into ,it has prohibition of plastic head Down function
12.The machine is running fastly,it is steady and low voice

Technical Parameter:

1.steel plate size:100*150mm
2.Max.printing area:1200-1500PCS/Hr

3.Power:220V/110V   50-60MHZ  30W

4.Air pressure:5-7bar

5.Printing workstation: 1 PC

6.Machine dimension:1000*500*1500MM

7.Package weight:150KG
