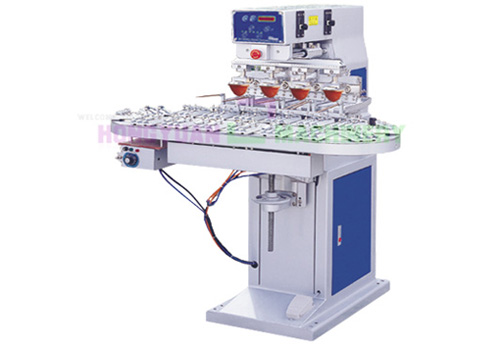

4 Color Pad Printing Machine From China (GW-P4/C)

  • Model number:GW-P4/C
  • Printing area:70*130mm
  • Printing speed:1500PCS/Hr
  • Machine size:1100*960*1350mm
  • Gross weight:170kg
  • MOQ:1set
  • Payment terms:T/T,Paypal,Western Union,L/C
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 7 workdays

Promotional items gift pad printing machine

Application:

It is a rotary pad printer, conveying products by rotary type turntable. The products can be overprinted with 4 colors. Running a circle can finish one time overprint. Comparing with shuttle pad printer, it come to a high steps. It can print bigger products with 4 color with fastly and steady.
It is suitable for printing electronic products, plastic shell, hardware products, stationary, small arts and crafts, logo on the surface of gift and toys

Function:

1. SCM IC complile action program,kinds of printing model option
2. Auto 4-digit counter built-in,and stat. Printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. Worktable, printing head and ink tray can be adjusted X.Y.Z direction
5. Sucking ink and the pressure of printing pad can be adjusted independently .
6. scrapper stroke can be adjusted
7. It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8. The speed of all the cylinders have an independent regulator intortum
9. Adopts original Japan SMC and Taiwan MINDMAN pneumatic component
10. Each adjustable location has scale logo
11. it has the function of forbiding the pad fallen when no air pressure enter into
12. The machine is running fastly,it is steady and low voice
13. installing auto hot-air system, adjust temperature

Technical parameter:

1.Steel plate size:100*150mm

2.Max.printing area:1500PCS/Hr

3.Power:220V/110V 50-60MHZ

4.Air pressure:5-7bar

5.Max.printing area:70*130mm

6.Max.outside size of products: L200* W90-100MM

7Printing workstation: 16 PCS
