Automatic One Color Pad Printing Machine for Bottle Caps

  • Model number:GW-P1-C
  • Printing area:110*110mm
  • Printing speed:2400PCS/Hr
  • Machine size:2300*1000*1600mm
  • Gross weight:540kgs
  • MOQ:1set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:plywood box
  • Delivery way:By Ocean
  • Lead time:within 30 workdays after your order confirmation

This machine is specially designed for printing bottle caps,it is fully automatic,improve production rate largely
1.PCL+Touch screen control
2.Auto 4-digit counter built-in,and stat. Printing quantity
3.Airframe adopts coin alloy,and metal coating surface
4.Worktable,plastic head and ink tray can be adjusted X.Y.Z direction
5.Sucking ink and the pressure of printing pad can be adjusted independently .
6.The distance of scratching ink is adjustable
7.It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8.The speed of all the cylinders have an independent regulator intortum
9.Each adjustable location has scale logo
10.when there is no pressure air into ,it has prohibition of plastic head Down  function
11.The machine is running fastly,it is steady and low voice
12.With hot air system
13.automatic loading and unloading system

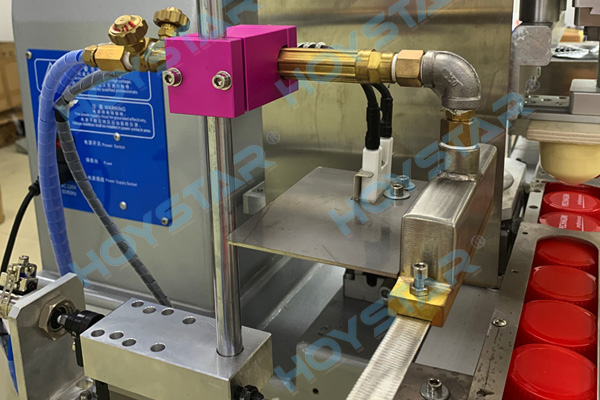

14.with flame per-treatment system
Technical parameter:
1.Steel plate size:140*250mm
2.Closed ink cup: 120MM
3.Max.printing area:2400PCS/Hr (for small caps,it can print 4 pcs of caps at one printing cycle,for bigger caps,it can print about 2pcs at one time
5.Air pressure:5-7bar
6.Printing workstation: 1PC
Printing Samples:
