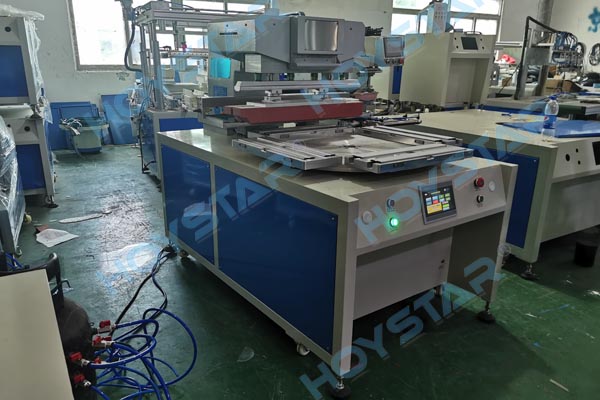

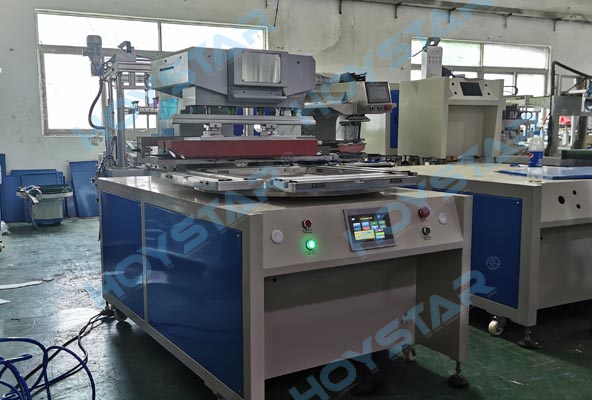

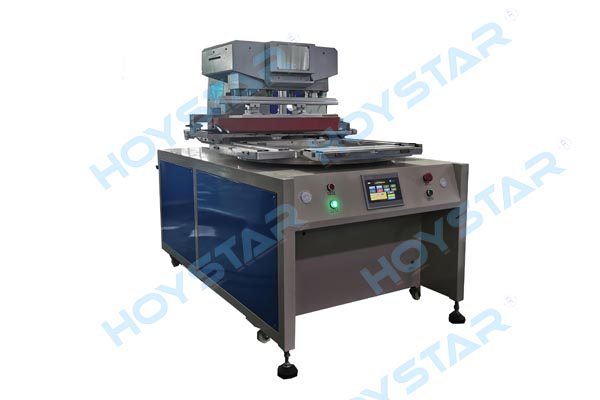

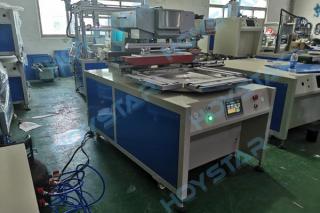

1 Color Pad Printing Machine for Rulers

  • Model number:GW-RUL-500
  • Printing speed:1000times/Hr
  • Machine size:1750*1400*1400mm
  • Gross weight:550kgs
  • MOQ:1 unit
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:plywood case
  • Delivery way:by sea or by air
  • Lead time:within 45 workdays after your order confirmation and deposit

Application:

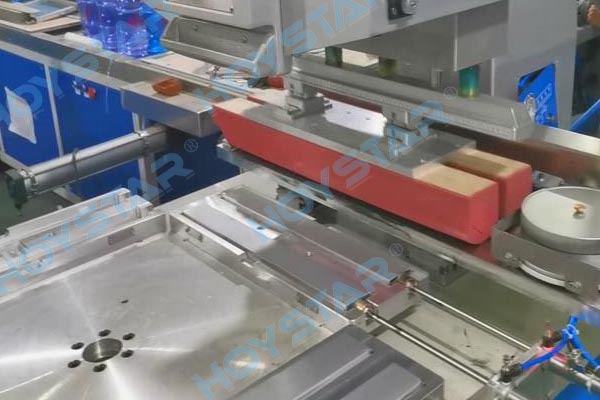

The pad printing machine is specially designed for printing stationery rulers,it has total 4 pcs of worktables,and can print 2 pcs of rulers at one time,like this,it can improve products outputs largely. It is easy to install and operate

Technical:

Printing speed: 1000times/Hr (it can print 2 pcs of rulers at one time)

Power: 220V/50Hz

The max.length of rulers: 600mm

Steel plate size: 220*970mm

Ink cup diameter: 200mm

Workstations: 4PCS

Machine size: 1750*1400*1400mm

Machine weight: 550kgs

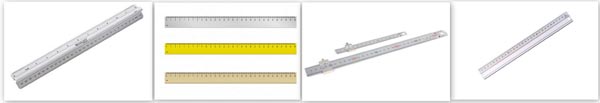

Printing Samples:
