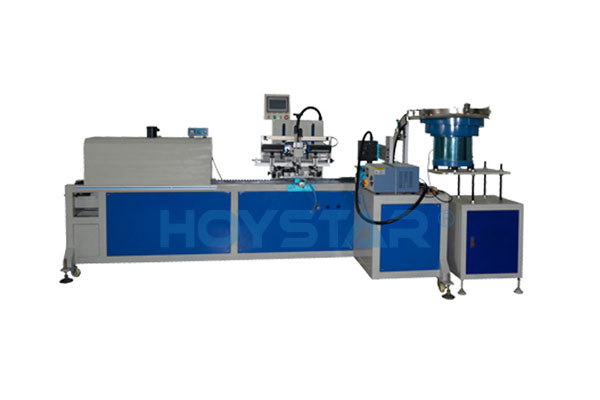

Automatic Plastic Tubes Screen Printing Machine

  • Model number:GW-2A-C
  • Printing area:200*300mm
  • Printing speed:1500PCS/Hr
  • Machine size: 2500*1000*1700（mm）
  • Gross weight:850kgs
  • MOQ:1set
  • Payment terms:T/T or Western Union,or Paypal
  • Package way:plywood box
  • Delivery way:By Ocean
  • Lead time:within 30 workdays after your order confirmation
  • Worktable size:300*400mm
Application: This machine can print various tubular products, such as ointment tube, test tube, lipstick tube and bottle cap.
Function:

1. Control system: PLC + HMI compile action program

2.Feeding system: automatic feeding of vibrating disc

3.Left and right up and down drive: servo motor

4.Drying system: IR drying system

5.Left and right stroke: 300mm

6.up and down stroke:100mm

7.Max.printing speed:1500PCS/Hr

8.Power:220V
