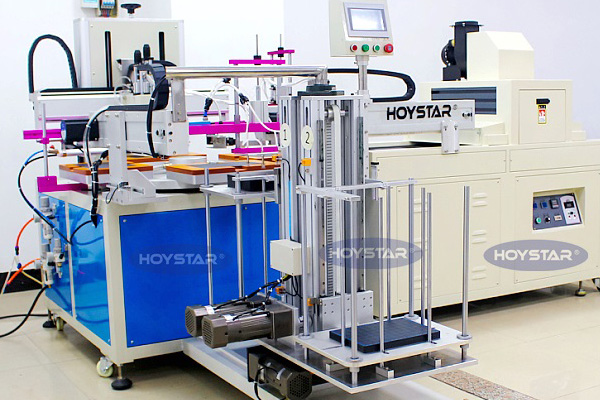

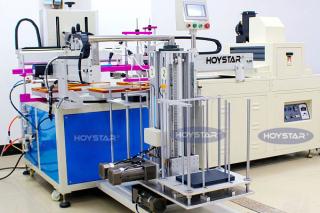

Screen Printing Machine for Cutting Mat /Clipboard(GW-PL-A)

  • Model number:GW-PL-A
  • Printing area:200*300mm
  • Printing speed:1000PCS/HR
  • Machine size:1500*2600*1700mm
  • Gross weight:850kgs
  • MOQ:1set
  • Payment terms:T/T or Western Union,or Paypal
  • Package way:plywood box
  • Delivery way:by Ocean or By air
  • Lead time:within 30 workdays after your order confirmation
  • Worktable size:300*400mm

Application:

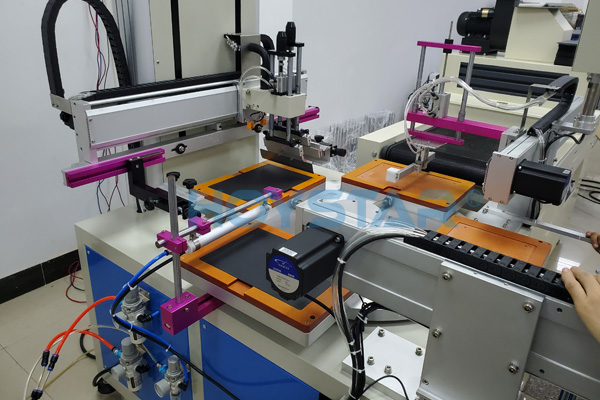

The machine is special designed for printing cutting mats with high speed and automatic. Building up printing and conveying system by high precision servo motor and cam divider to finish printing automatically, The printing speed can be up to 1000pcs/hr

Technical Parameter:
 1. Fully automatic, no need person to operate
 2. Locating automatically to keep printing precision
 3. No product without printing system, keep printing stable
 4. High and strong vacuum system, keep printing precision
 5. UV dryer or high temperature
 6. PLC and touching screen control system. Digital control system,can set parameter randomly, operate easily with big function
 7. The four angle of screen frame holder can be adjusted, keep the balance between screen frame and worktable, also make sure the layer of printing ink is even
 8. Printing angle, printing pressure and screen distance are easy to set. The change of squeegee and flood bar is controlled by precision guide, keeping the vertical precision, working smoothly
 9. With emergency switch to keep safe and stable
 10. Locating several workstations by Taiwan precision rotary locating with stable, fast, improving  efficiency

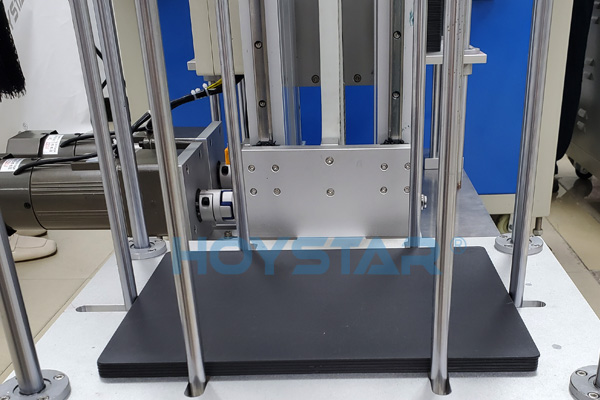

11.The loading system is rotary type. like this,it can save time

Technical parameter:

Model number GW-PL-A
Max.printing area 200*300mm
Max.printing speed 1000PCS
Machine size 1500*2600*1700mm
Machine Weight 850kgs
UV Lamps 2KW*2PCS
UV Machine Conveyor width 600mm
UV Machine length 1500mm
UV Machine weight 250kgs
UV machine size  700*1800*1500mm
Power 220V/50Hz

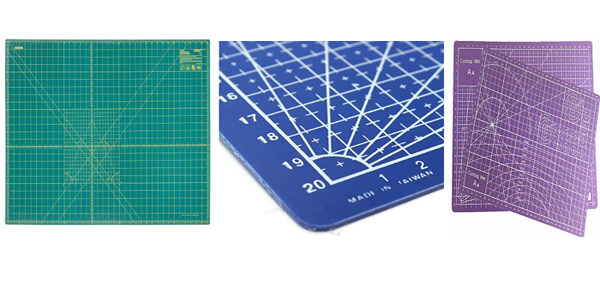

Printing samples:
