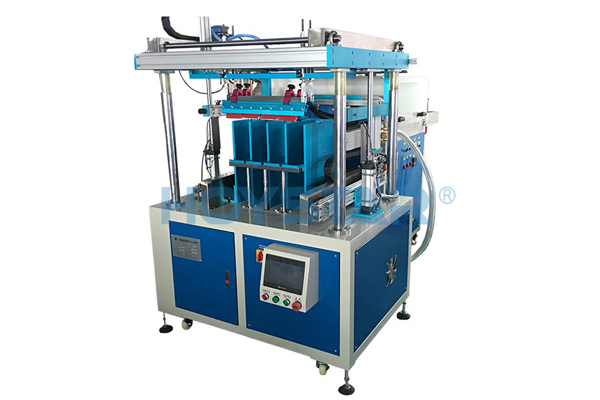

Screen Printing machine for Shoe insole,Screen Printing Equipment for Shoe Insole(GW-3040-A)

  • Model number:GW-3040-A
  • Printing area:300*400mm
  • Printing speed:1200times/Hr
  • Machine size:1700* 1400* 1900MM
  • Gross weight:550kgs
  • MOQ:1set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:plywood box
  • Delivery way:By Ocean
  • Lead time:within 30 workdays after your order confirmation
  • Worktable size:500*600mm

Application:

full automatic screen printing machine is used for printing flat product, such as insole, board, silicone sheet,ruler, pp sheet and so on.High printing speed , whole machine do not need worker to operate, save labor.

Function:

1.This machine adopt PLC controller,Touch screen control,easy to operate

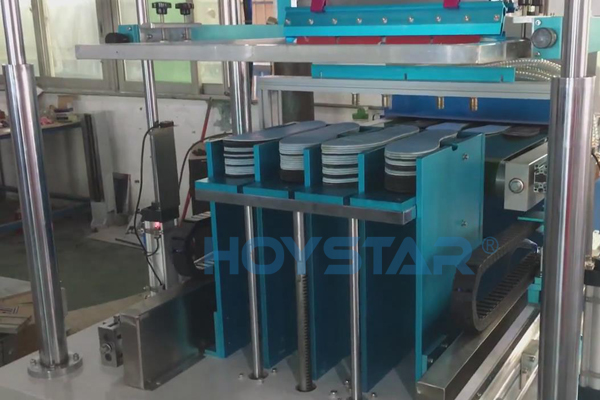

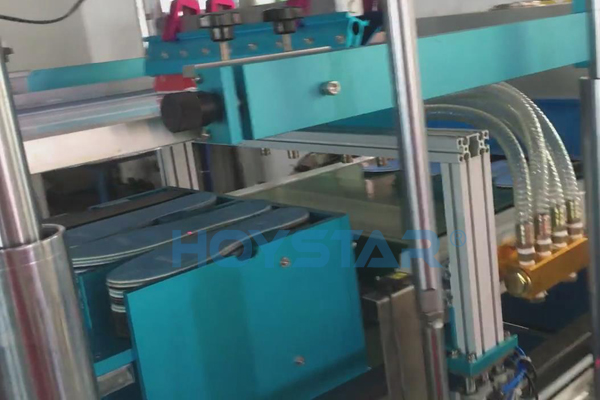

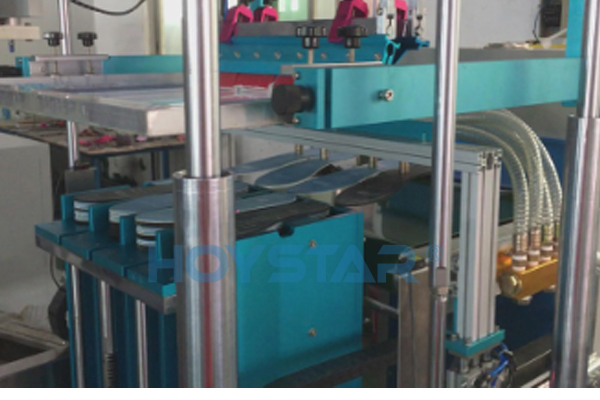

2. auto loading device adopt lifting loading platform.
3. automatic unloading to conveyor drying machine.
4. printing head front and back adopt motor control, ensure printing precision!
5. Pneumatic components control adopts Taiwan AirTAC brand,front and back printing precision linear Guide rails using Taiwan brand.
6.Machine surface is metallic paint ,beautiful and dignified
7.Machine have drying system,the infrared drying and uv drying can option.Printed product can drying 100%.

Technical parameter:

1. Printing area:300*400mm
2. Frame size:500*700mm.
3. Machine size:1600*2000*1500mm
4. Printing speed:5600PCS/H,print 4 pieces at one time.
5. air pressure:6-8 Bar
6. Drying machine size:600mm width tunnel.

Printing Samples:
