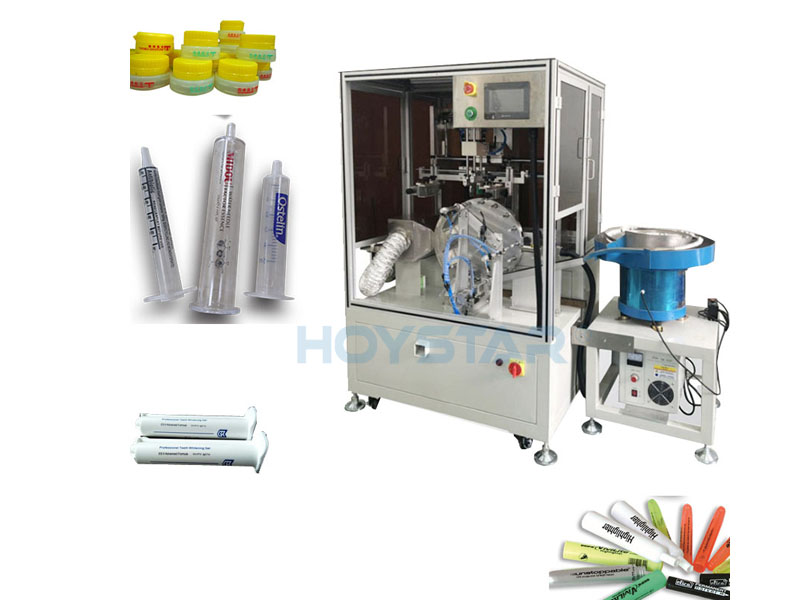

Automatic Screen Printing Machine for Plastic tubes

  • Model number:GW-2A-P
  • Printing area:100*300mm
  • Printing speed:3000PCS/Hr
  • Machine size:1500*1080*1800mm
  • Gross weight:350kgs
  • MOQ:1 unit
  • Payment terms:T/T or Western Union,or Paypal
  • Package way:plywood box
  • Delivery way:By Ocean
  • Lead time:within 30 workdays after your order confirmation

Application:
The automatic screen printing machine is fully automatic design, no need person for operation,automatic feeding.This machine is a full-automatic curved surface screen printing machine, which is widely used in the surface pattern and logo printing of plastic pipes, small round pipes, hyaluronic acid pipes, etc., with unmanned operation, automatic feeding, automatic printing, pre press plasma treatment and post press UV drying
Function:
·  Advance plasma treatment, instead of tradition frame treatment, more safety and improve ink adhesion
· Auto thermostatic UV oven drying after printing, fast drying
· Japan Mitsubishi PLC with man-machine touch screen, programmable printing process, easy operation
· Japan KEYENCE fiber, accurate location
· Equipped with non-object no printing system, auto counter, safety guard and faulty alarm device.
· Worktable is adopt Taiwan TANTZU cam indexers, higher precision, more smooth and faster
Technical Parameter:

Max.frame size:200*500mm

Max.print logo size:100*300mm

Max.printing speed:3000PCS/Hr

Max.printing diameter:8-90mm

Printing product length:30-150mm

Power:380V 50-60HZ

Wattage:3KW

Machine size:1500*1080*1800mm

Machine weight:350kgs
