Roll To Roll Screen Printing Machine(GW-TXT-AT)

  • Model number:GW-TXT-AT
  • MOQ:1set
  • Payment terms:T/T,Paypal,Western Union,L/C
  • Package way:plywood
  • Delivery way:by ocean
  • Lead time:within 30 workdays

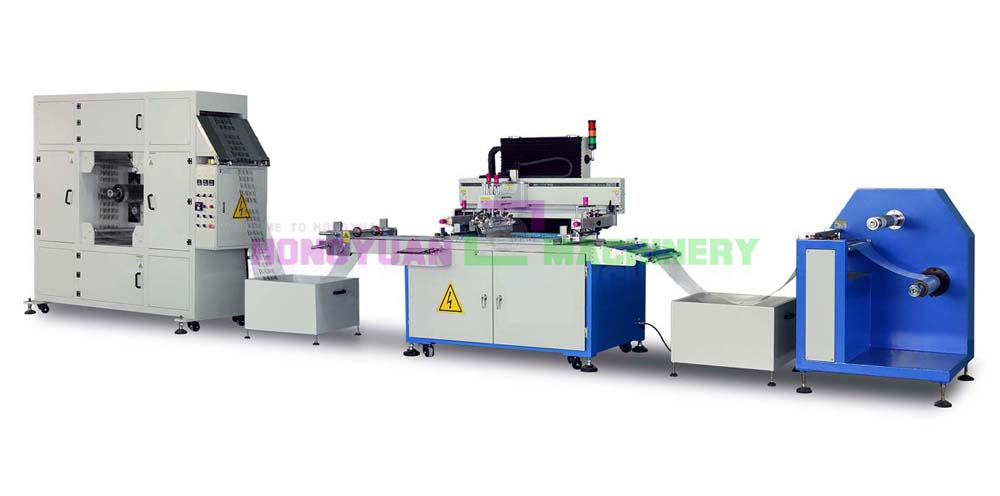

Roll to roll automatic rotary silk screen printing machine for adhesive tape pvc film


Household appliances:  Panel printing of electric cooker,induction cooker,washing machine and air conditioner
Electronics industry:  Electrical membrane switch,flexible printed circuit,copper foil,aluminum foil,LED printed circuit
Communication &information industry: Mobile phone shell,mobile phone keypad,battery accessories,peripheral terminal equipment
Clothing & textile industry: Transfer printing and tagless labels in clothing and textile industry
Traffic & shipping marks: Container and automobile compartment labels,motorcycle/bicycle decals
Instrument industry:  Electronic switch and instrument panel labels


1. Roll material automatic printing,repeatable color register,fast printing speed,can reach 1200-1800 printing times/per hour(according to product size to determine).

2. The use of touch screen man-machine interface control, easy to operate.

3. Multi-color printing using photoelectric eye tracking, PLC+ color code sensor control system para-position,automatic

    detection of color code,if there is abnormal automatic stop machine.

4. Can optional set the screen position,printing pressure,squeegee speed,frame height etc.

5. Can optional set printing speed,calculate printing quantity,reach setting quantity will automatic stop and alarm.

6. Has abnormal as well as no product will automatic stop and alarm.

7. The use of three section type air suction device,can according to printing material request to adjust strong wind, weak wind, off.

8. Printing machine is equipped with auxiliary inspection working lamp,that convenient for check out defective products.

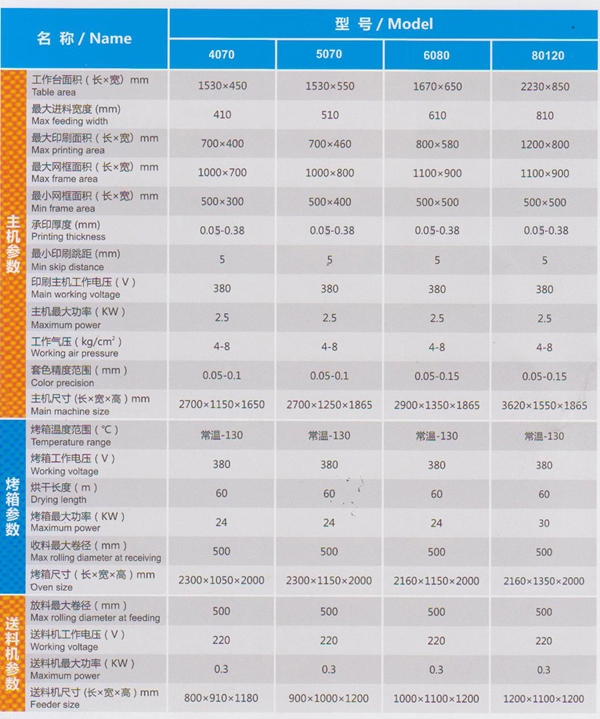

Technical parameter:

Roll to roll screen printing machine

Roll to roll screen printing machine

Roll to roll screen printing machine
