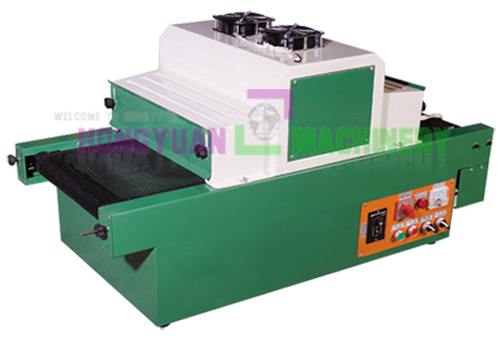

Desktop UV Curing Machine(GW-UV300A)

  • Model number:GW-UV300A
  • Machine size:1200*660*600mm
  • MOQ:1 Set
  • Payment terms:T/T,Western Union,Paypal
  • Package way:by wooden box
  • Delivery way:by sea or by air
  • Lead time:Within 3-7workdays after get client's deposit

Desktop uv dryer ,digital uv coating machine


UV Dryer machine is special design for curing different material product surface after printed by uv printing ink,uv painting.Such as cellphone crust,compact disc,electronic components,thin film switch,liquid crystal film, terminal gumming, cellphone parts sticking,glass,cell phone case,ipad cover,ceramic tile,and so on.

Technical Parameter:

Outside dimension:1200*660*600mm
Inlet length:250mm
Output length:270mm
Belt width:300mm
Belt material:Teflon(imported)
Inlet height: 540±100mm
Inlet point height: 10-120mm
UV lamps power: 2.0KW/pc×2 (the height of light shine can be adjusted)
UV lamps shine width:300mm
UV lamps shine area:300mm
Exhaust fan:38W,2set
Wave crest value:365mm
Settling time: about 3 min
Convey motor 25W/1set
Convey speed: 0-12m/min,(the speed can regulate without any limmits)
Convey stylechain
Speed style: electronic motor speed
Power supply: single phase 220v
Net weight: 65KG
