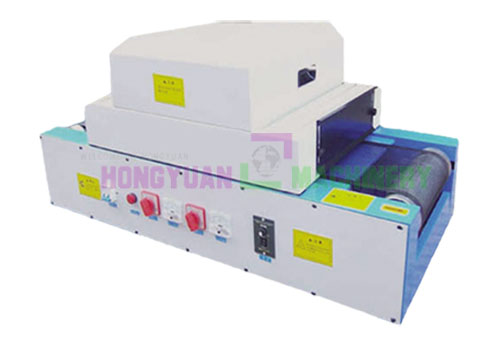

Desktop Uv Curing Machine (GW-UV300B)

  • Model number:GW-UV300B
  • Machine size:1200*560*600mm
  • Gross weight:140KG
  • MOQ:1set
  • Payment terms:T/T,western union, paypal
  • Package way:by wooden box
  • Lead time:Within 3-7workdays after get client's deposit

Uv varnish phone case uv dryer machine

Product excellence:

The UV curing machine with convey, is used in cellphone crust, compact disc, thin film switch, electronic and plastic crust UV surface to painting, kinds of UV paint, IMD injection products curing. Morever, it also can be used to cure electronic components, liquid crystal film, terminal gumming, cellphone parts sticking and LCD etc. The machine with small volum, light weight, precise making, convenient moving, is suitable to install on desktop

Techical parameter:

1.Outside dimension1200*560*600mm

2.The length of inlet250 mm

3.The length of output250 mm

4.The height of inlet148mm

5.The width of belt300mm

6.The material of beltteflon (imported)

7.Light tube power:1KW/pc------2PCS (the height of light shine can be adjusted by manual)

9.The value of wave crest300mm

10.The width of light shine300mm

11.Convey motor25W 115

12.Exhaust fan :6sets

13.Convey speed 0-12m/minelectron adjusting

14.Convey stylechain

15.Decorative style: injection

16.Power supply: 220V

17.Net weight: 110KG

18.Gross weight:140 KG

19.Total Power:2.2KW
