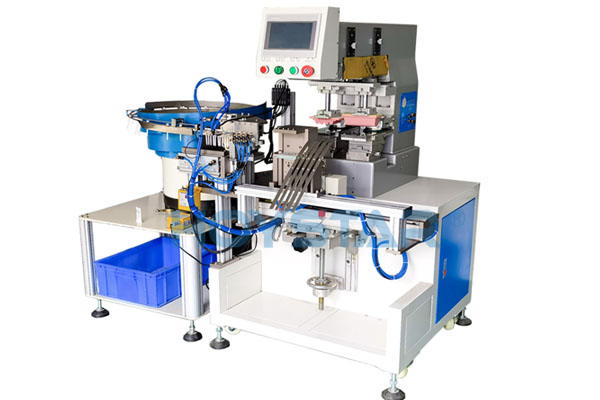

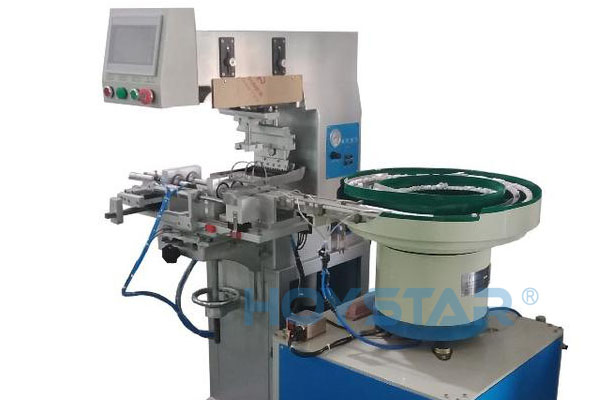

Automatic 2 Colors Golf Tees Pad Printing Machine(GW-P2/S-G)

  • Model number:GW-P2/C-G
  • Printing area:80*80mm
  • Printing speed:1000times/Hr
  • MOQ:1
  • Payment terms:T/T
  • Package way:plywood
  • Delivery way:By Ocean
  • Lead time:15 workdays

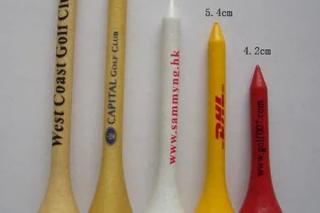

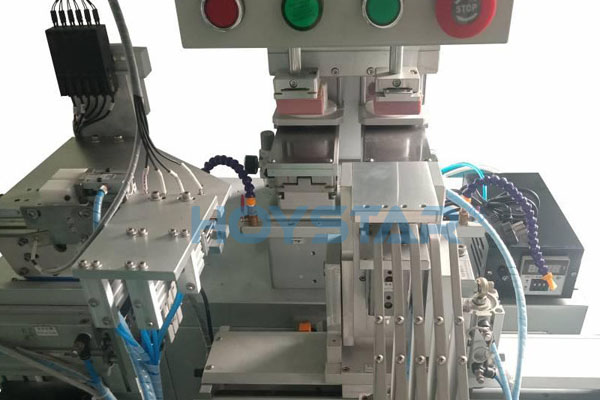

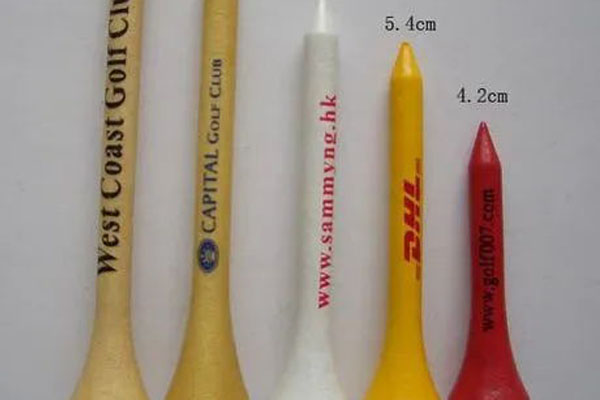

This is a pad printing machine specially designed for automatic printing of golf Tees. It uses a vibrating plate for feeding. It can print 4 Golf Tees at one time and complete 800-1000 two-color finished golf tees in one hour, reducing labor input and improving production efficiency

Function and Technical:

1) Automatic loading and unloading system, fully unmanned operation;

2) The automatic positioning system keeps the printing accuracy high;

3) Steel plate size: 0.5*100*250mm

4) Printing color: 1 color | two colors

5) Up and down stroke of silicon pad: 75mm

6) Front and rear stroke of silicon pad: 250mm

7) Diameter of ink cup: 90mm

8) Machine speed: 800-1000 times / hour (printing 4 products at a time)

9) Power supply: 220V

10) Air supply: 5-7bar
