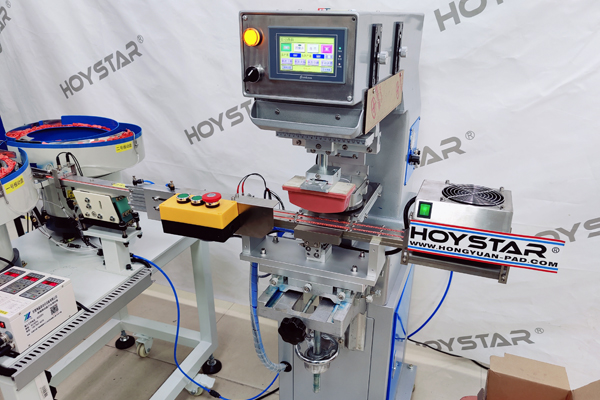

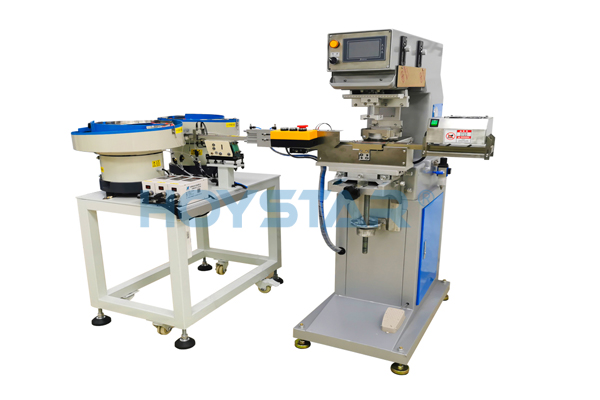

Size Clips Automatic Pad Printing Machine(GW-P1/C-S)

  • Model number:GW-P1C-S
  • Printing area:110*110mm
  • Printing speed:1200times/Hr(10PCS/time)
  • Machine size:L1200 × W800 × H1630mm
  • Gross weight:480KGS
  • MOQ:1
  • Payment terms:T/T
  • Package way:plywood
  • Delivery way:By Ocean
  • Lead time:20workdays

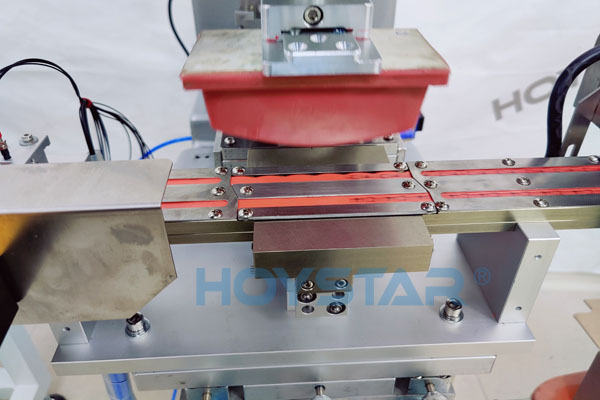

Application This is size clips automatic pad printing machine,and it is a non-standard customized machine, It can print 10PCS of clips at one time (there are 2 tracks, and each track prints 5PCS of size clips, depending on the length of the size). It has the characteristics of high speed, high precision and stability.
Function 1. PLC + touch screen control
2. automatic four digit counter is set inside to facilitate recording the quantity of printed products;
3. the fuselage is of aluminum alloy structure, with high-temperature baking paint on the surface, light weight, solid, beautiful and durable;
4. independently adjust the up and down stroke of silicon pads, greatly improving the production efficiency and debugging speed;
5. the speed of each action can be adjusted independently;
6. the adjustment position is marked with scale;
7. the ink cup is automatically balanced, and the oil scraping is clean;
8. the workbench and each ink cup can independently adjust the X, y and axis angles, with accurate chromaticity and high efficiency;
Technical

★ steel plate size: 140*250mm

Ink cup size: 120mm

★ maximum speed: about 8000-10000PCS/Hr (the actual speed depends on the actual situation)
★ air pressure: 5~6 bar
★ voltage requirements: AC220V single phase 50/60hz
★ machine size: L1200 × W800 × H1630mm
★ machine weight: about 480kgs
Printing Samples
